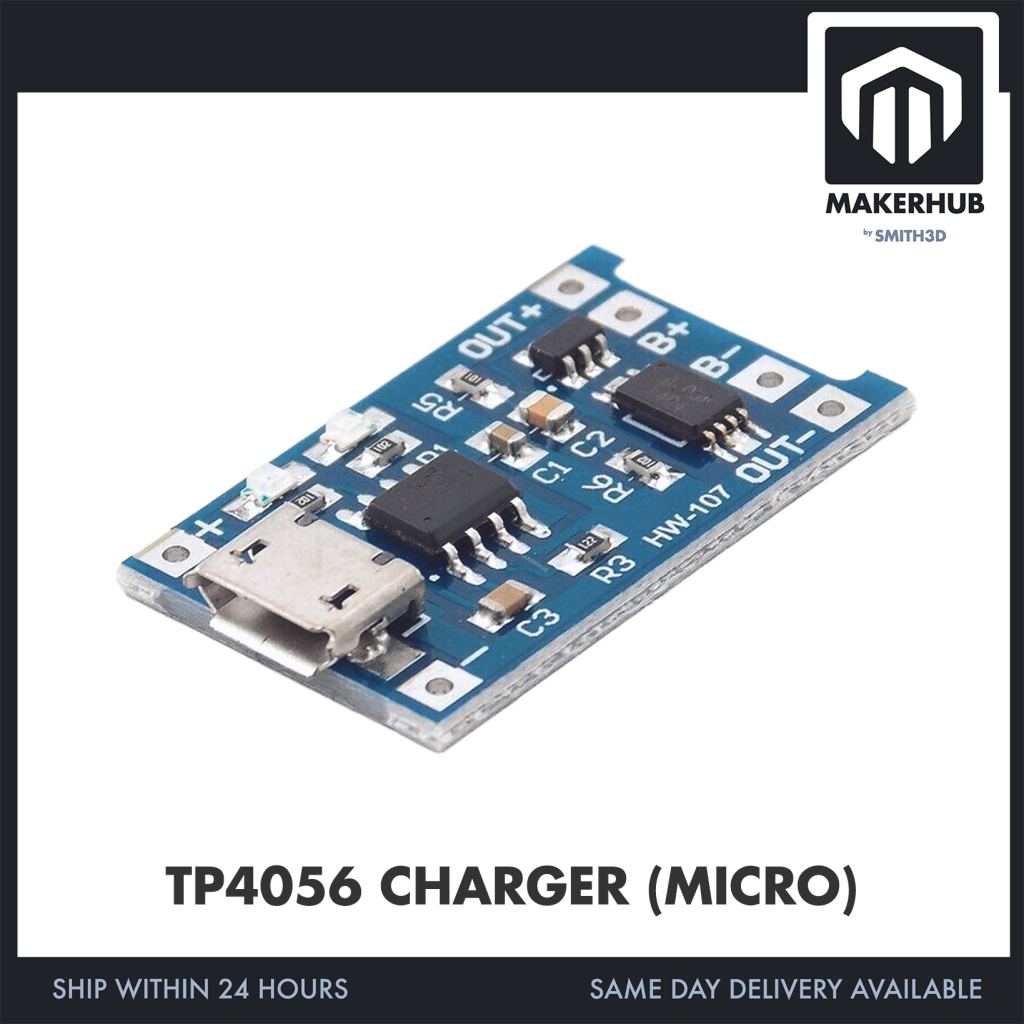

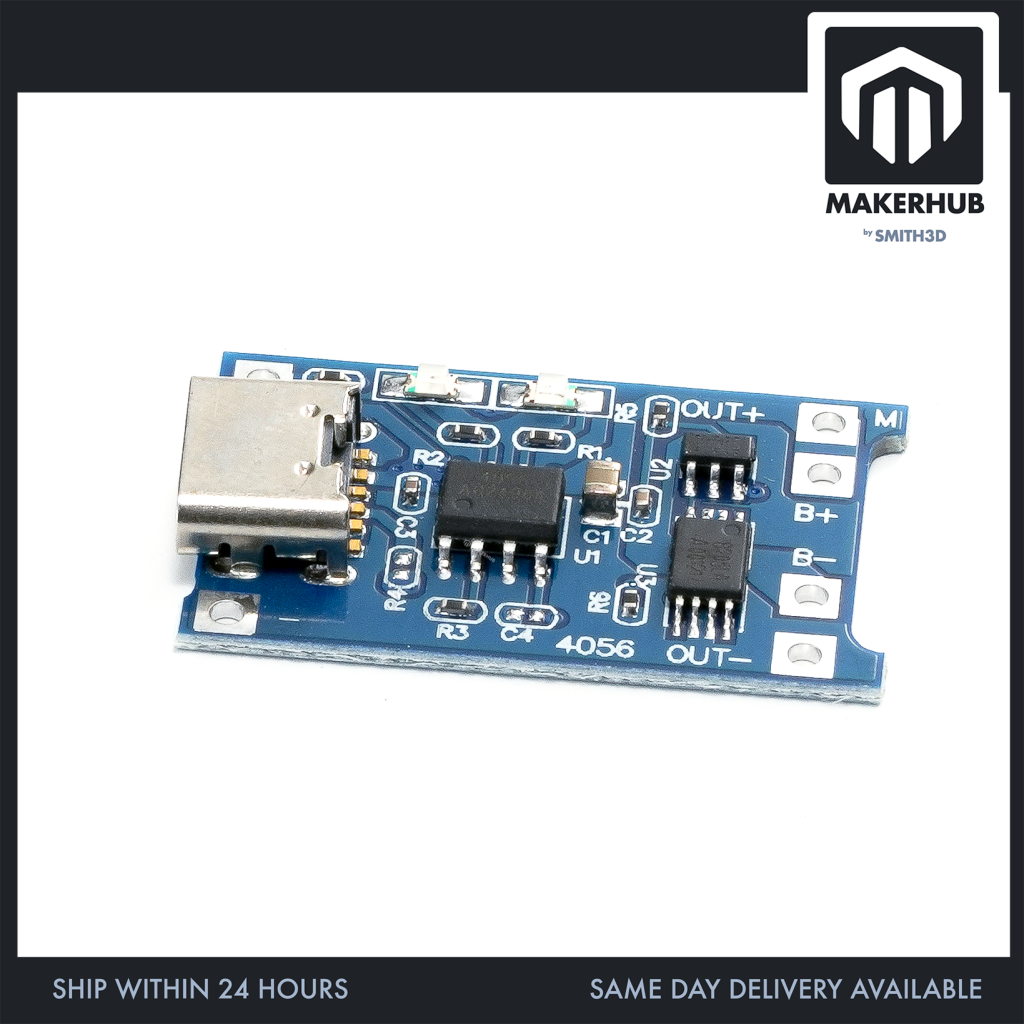

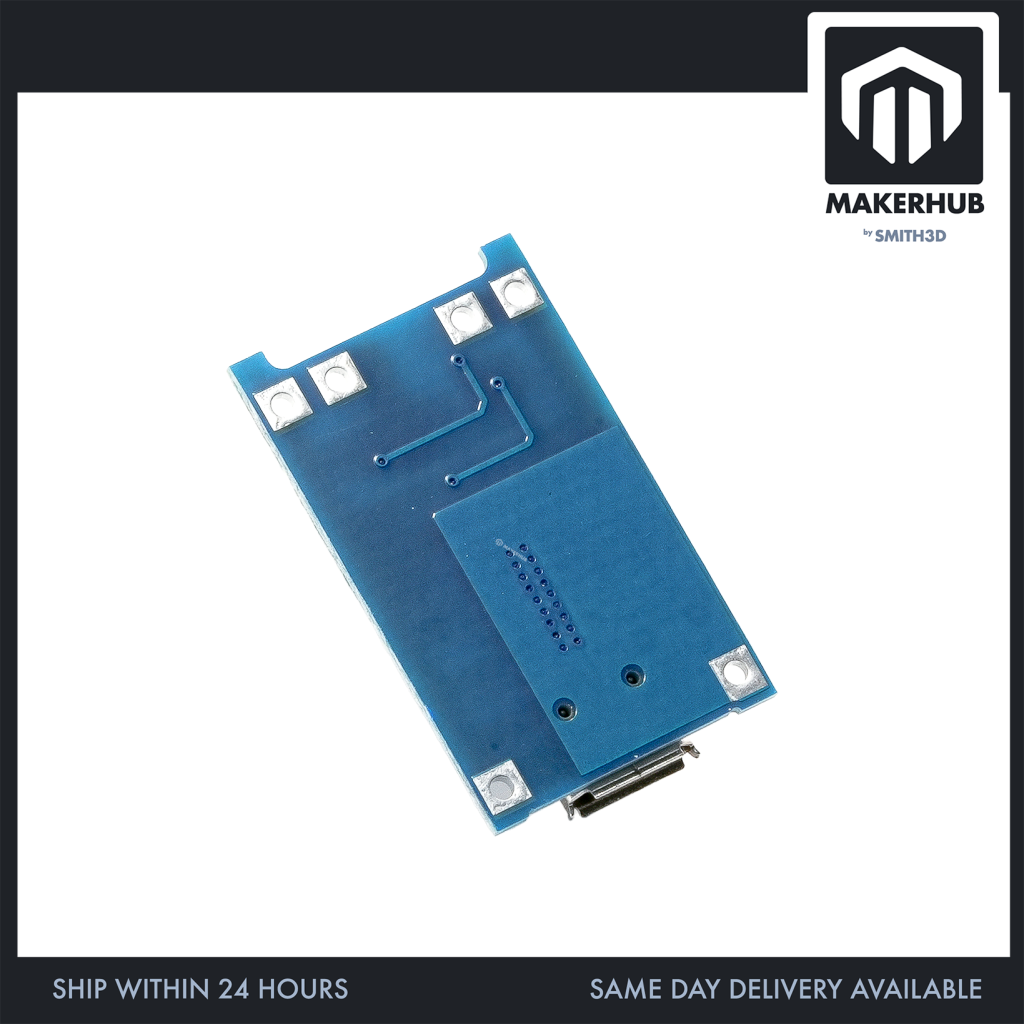

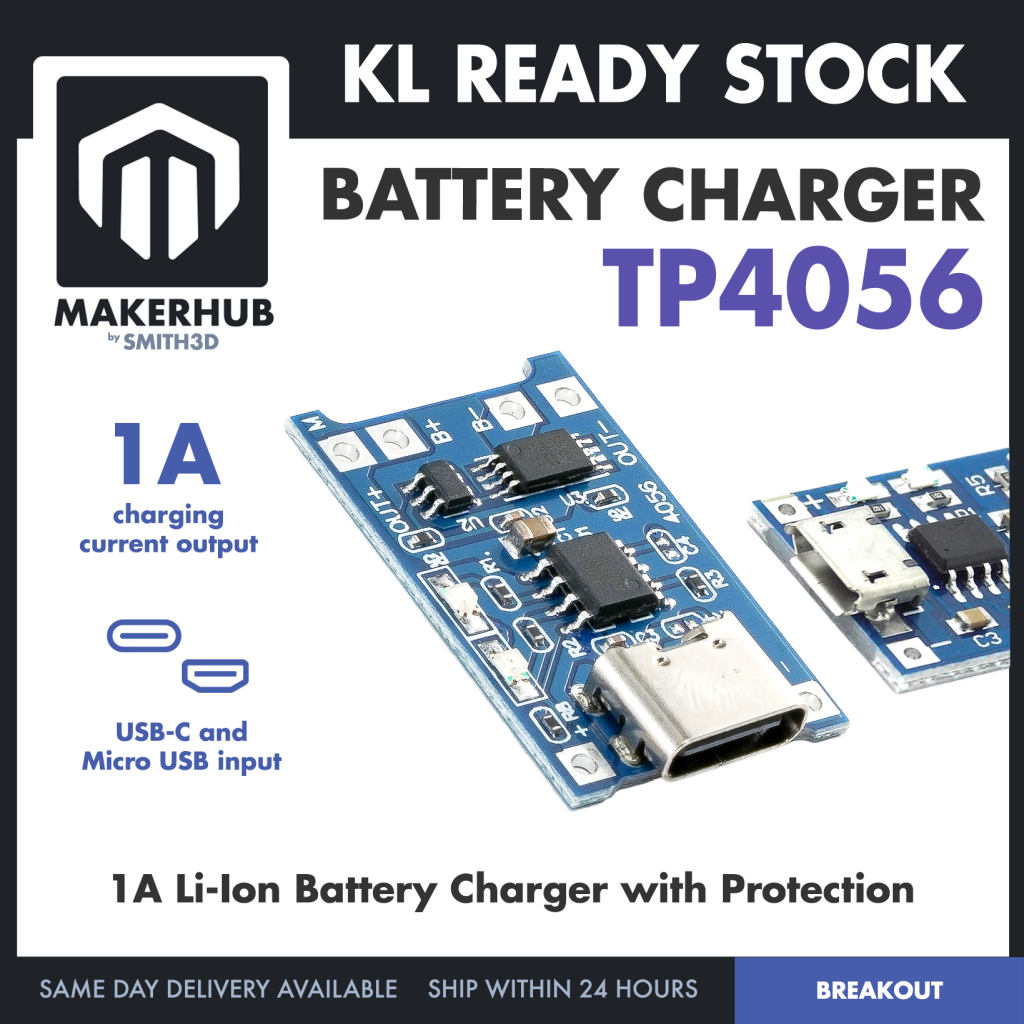

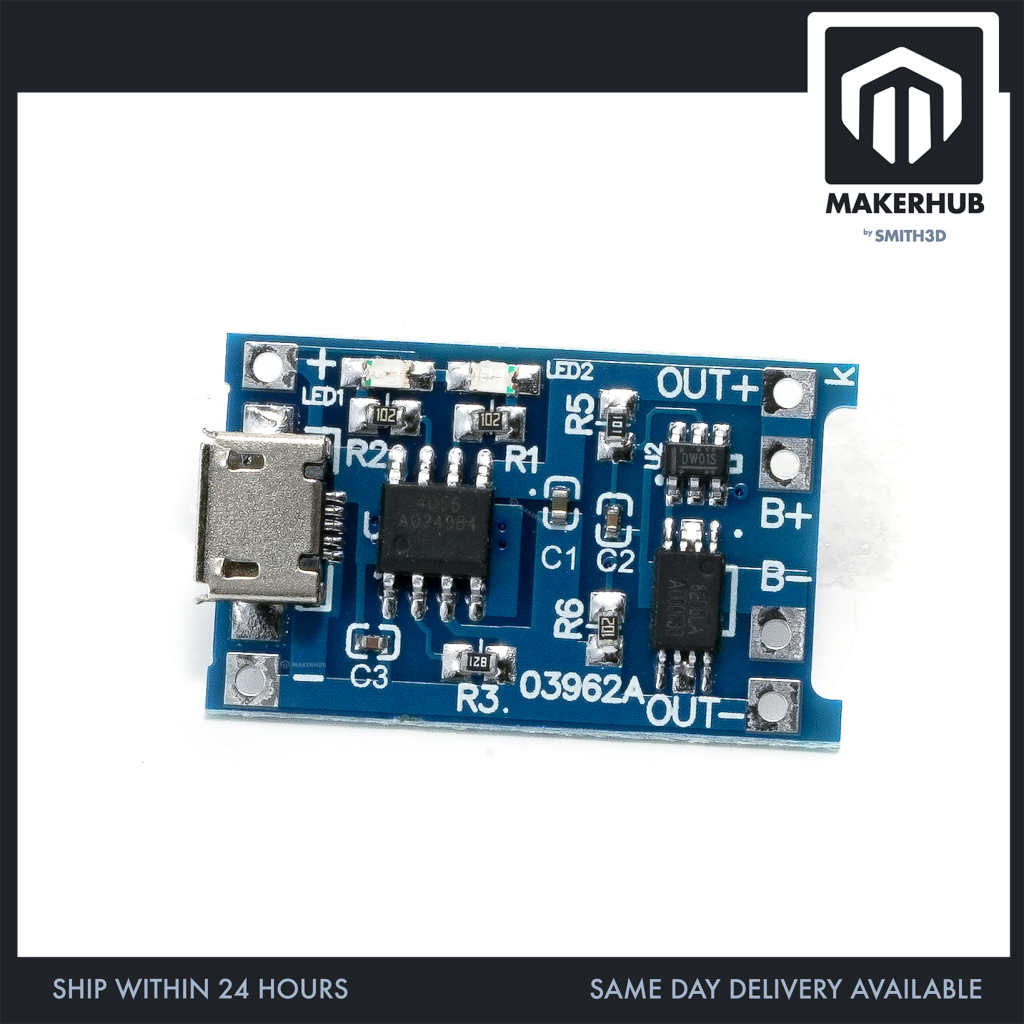

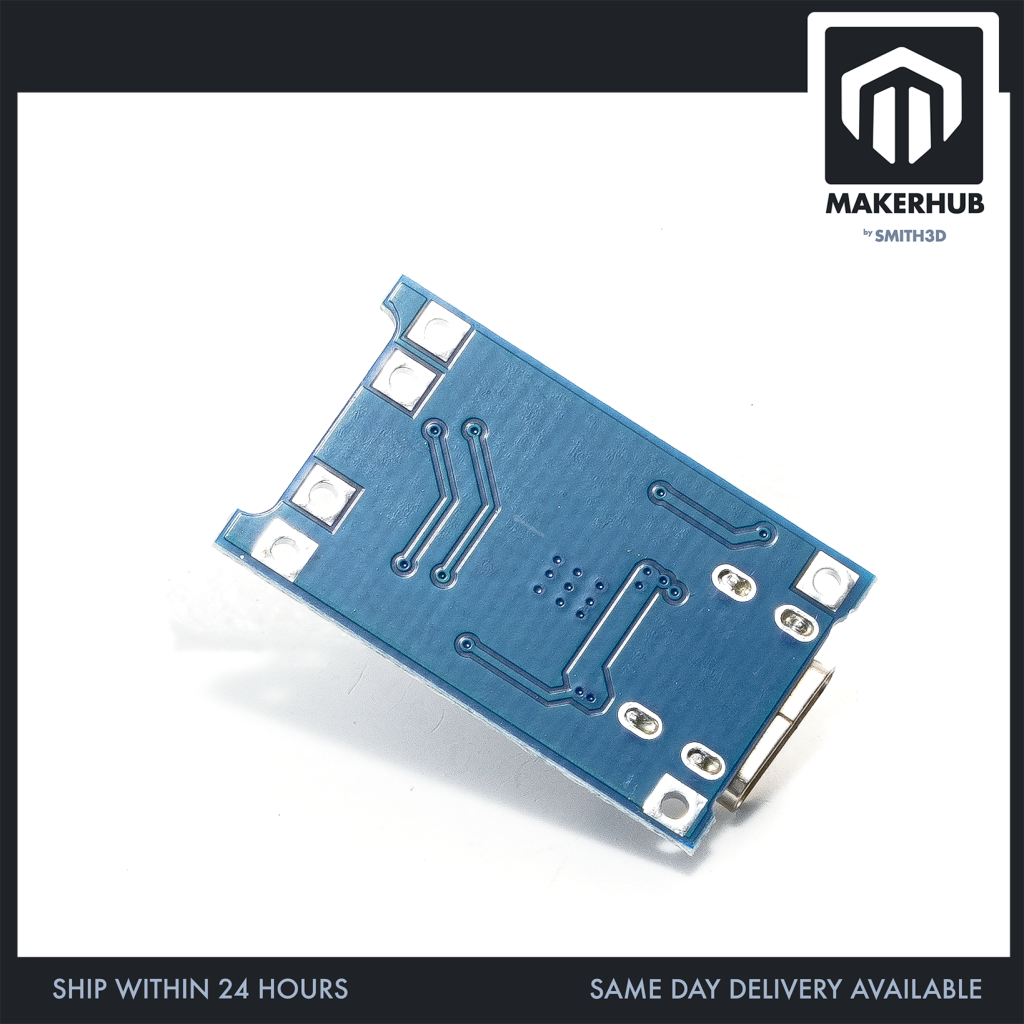

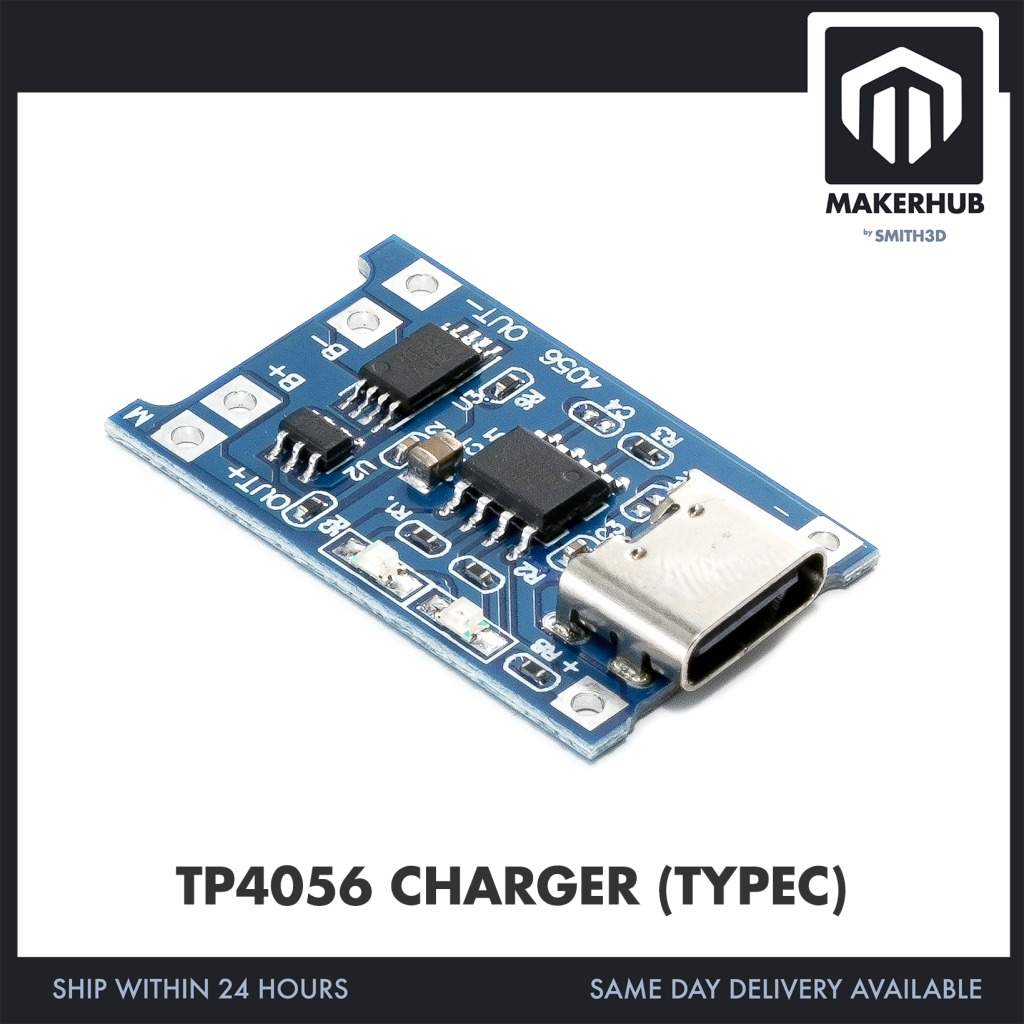

TP4056 18650 Battery Charger Module Lithium Ion Battery Li-ion Battery Charger Type C Micro USB Charging Module

✅ Ready Stock in KL(Sungai Besi)
🔥 Ship within 24 hours from KL on working hours | Monday to Saturday, ( 10:00 AM to 6:00 PM ), Closed on Sunday
🚚 Same Day Delivery Available For Klang Valley Customers.
☎️ Message us via Shopee Chat or Whatsapp +6011 – 6166 5388 to arrange same day delivery or for product enquiry


The TP4056 18650 Battery Charger Module is a must-have for any DIY enthusiast looking to power up their projects with rechargeable lithium-ion batteries. This compact and versatile module supports both USB Type-C and Micro USB inputs, making it easy to charge your 18650 batteries from a variety of power sources. With a maximum charging current output of 1A and built-in protection features, this module ensures safe and efficient charging for your batteries. The module’s LED indicator lights keep you informed about the charging status, so you always know when your batteries are ready to go. Whether you’re building a robot, a smart home device, or an educational project, the TP4056 18650 Battery Charger Module is the perfect choice for reliable and convenient battery charging.


⭐ Specification
– Supports USB Type-C and Micro USB inputs
– Input voltage range: 4.35-6V (5V recommended)
– Charge cut-off voltage: 4.2V ± 1%
– Maximum charging current output: 1000mA
– Battery overcharge protection voltage: 4.28V
– Battery overcharge lifting voltage: 4.00V
– Battery discharge protection voltage: 3.0V
– Battery discharge termination voltage: 3.2V
– Over-current protection current: 3A
– Board size: approximately 2.5 x 1.65cm
– LED indicators: no load (no light), charging (red light), fully charged (green light)


⚒️ Interesting Project
1. DIY Power Bank: Create your own portable power bank using the TP4056 module and 18650 batteries. Learn about battery management and circuit design while building a practical device for charging your gadgets on the go.

2. Solar-Powered Robot: Integrate the TP4056 module into a solar-powered robot project. Explore renewable energy and robotics as you design a robot that can charge its batteries using solar panels and the TP4056 module.



📦 Package Includes:
– 1x TP4056 18650 CHARGER (Model Depending On Option)
