CCPM Servo Tester Digital LCD RC Helicopter Aircraft Servo Motor Speed Controller Tester Channel Power Testing Tool

✅ Ready Stock in KL(Sungai Besi)
🔥 Ship within 24 hours from KL on working hours | Monday to Saturday, ( 10:00 AM to 6:00 PM ), Closed on Sunday
🚚 Same Day Delivery Available For Klang Valley Customers.
☎️ Message us via Shopee Chat or Whatsapp +6011 – 6166 5388 to arrange same day delivery or for product enquiry

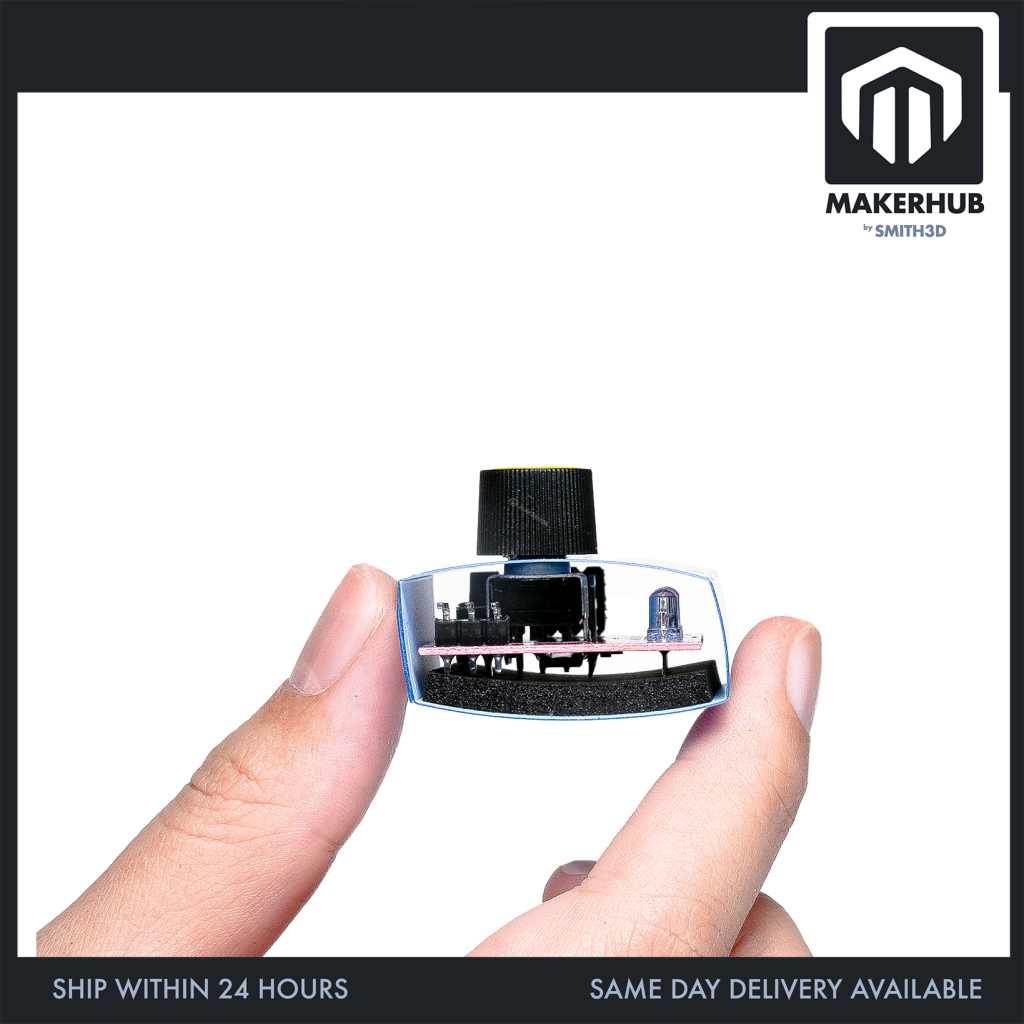

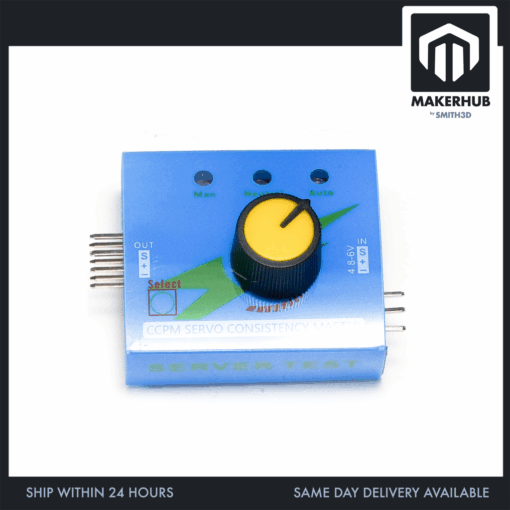

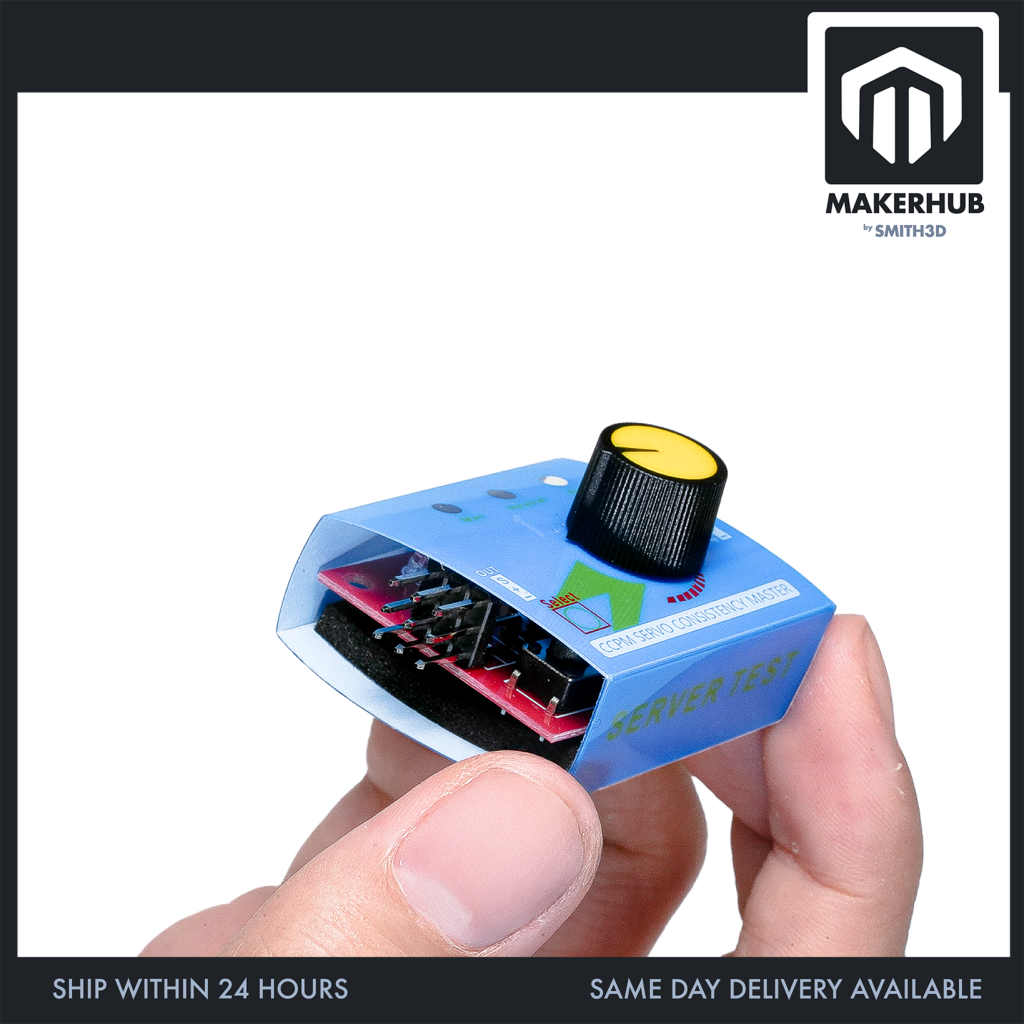

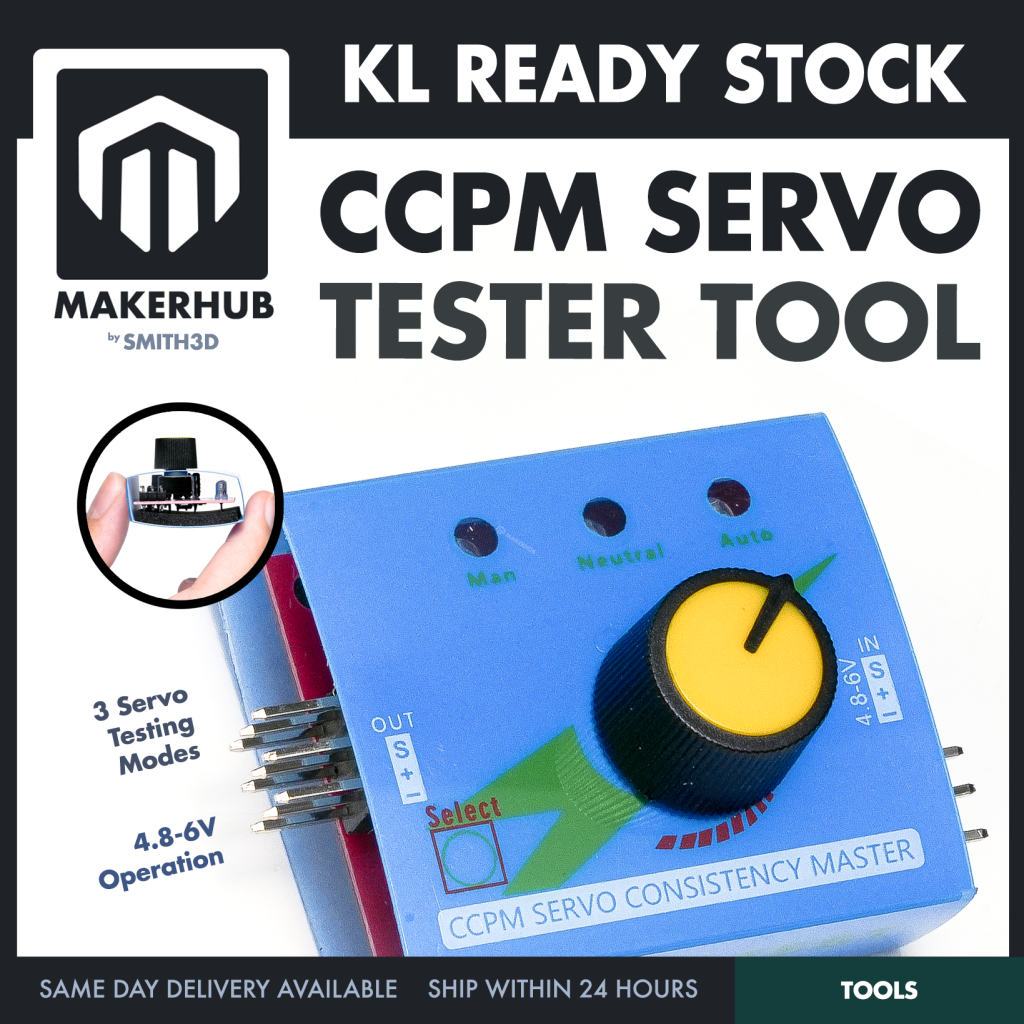

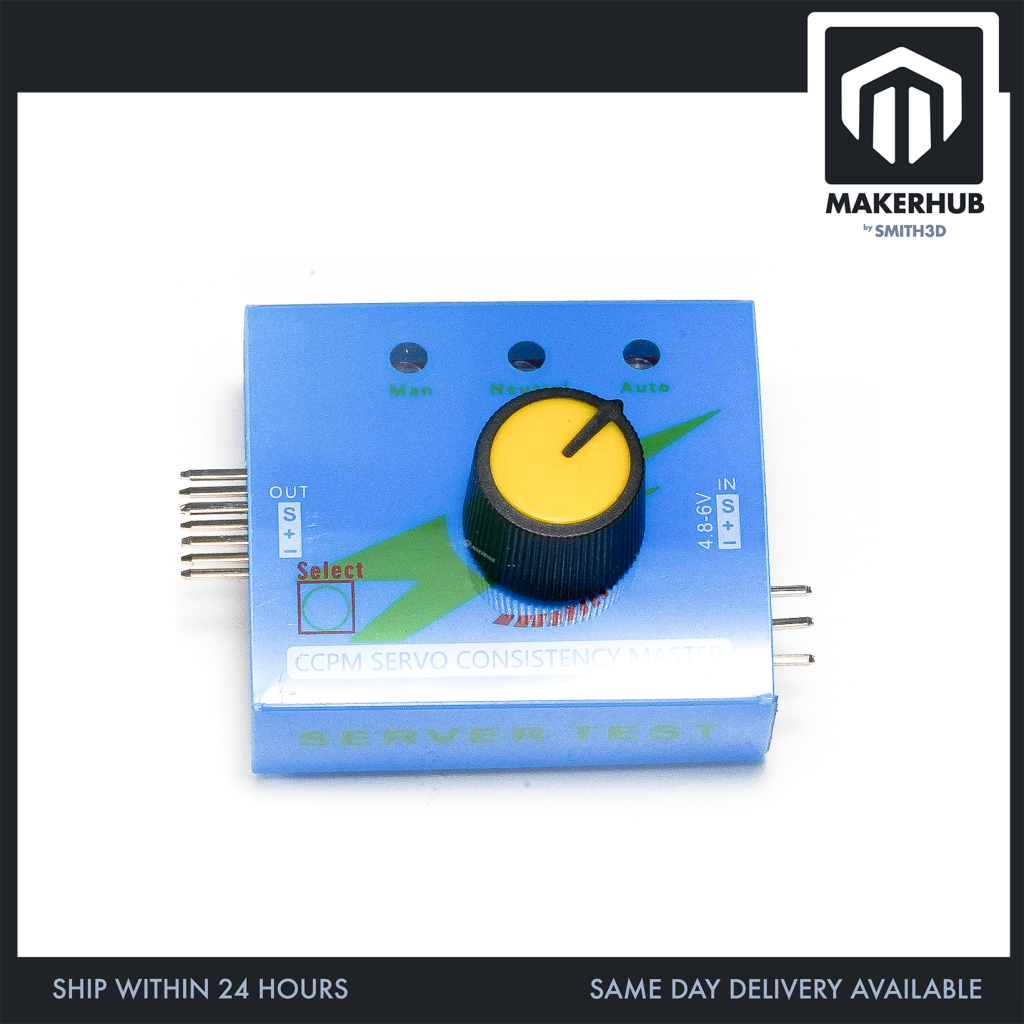

Handy piece of kit right here! This CCPM Servo Consistency Master / Tester is a straightforward tool for checking your servo motors and Electronic Speed Controllers (ESCs) without needing a full radio transmitter and receiver setup. You can test up to three servos at once, which is great for checking consistency or setting up multi-servo systems. It features three distinct modes selected by a simple push button: ‘Manual Mode’ lets you turn the knob to check servo response speed and range, ‘Neutral Mode’ sends the servo back to its center point (1.5ms), and ‘Automatic Mode’ makes the servo sweep back and forth like a window wiper, testing its full travel. It’s powered by 4.8V to 6V input, making it compatible with typical RC receiver packs. A must-have for any RC hobbyist or robotics builder to test components before installation.


⭐ Specification
– Input Voltage: 4.8 – 6V DC
– Output Signal: 1.5ms ± 0.5ms (Neutral)
– Test Modes: Manual (Knob), Neutral (Center), Automatic (Sweep)
– Simultaneous Testing: Up to 3 Servos
– Connections: 1x Input 3-pin Header, 3x Output 3-pin Headers
– Dimensions (L x W x H): Approx. 48 x 42 x 17 mm
– Weight: Approx. 7-10g
– Functions: Servo Testing, ESC Testing, Servo Consistency Check


⚒️ Interesting Project
– Quickly test servos before installing them in your robot or RC plane.
– Compare the speed and travel range of different servo models.
– Set up multi-servo linkages ensuring they move consistently.
