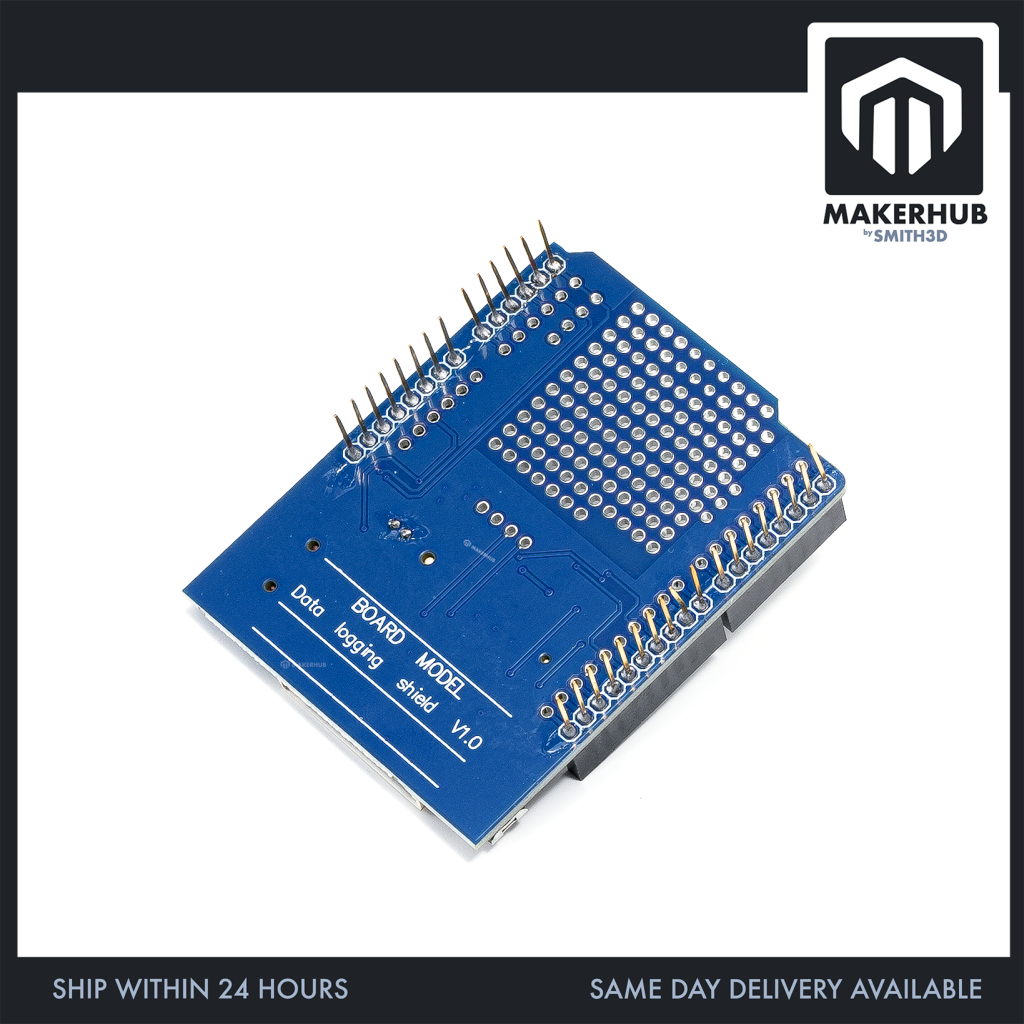

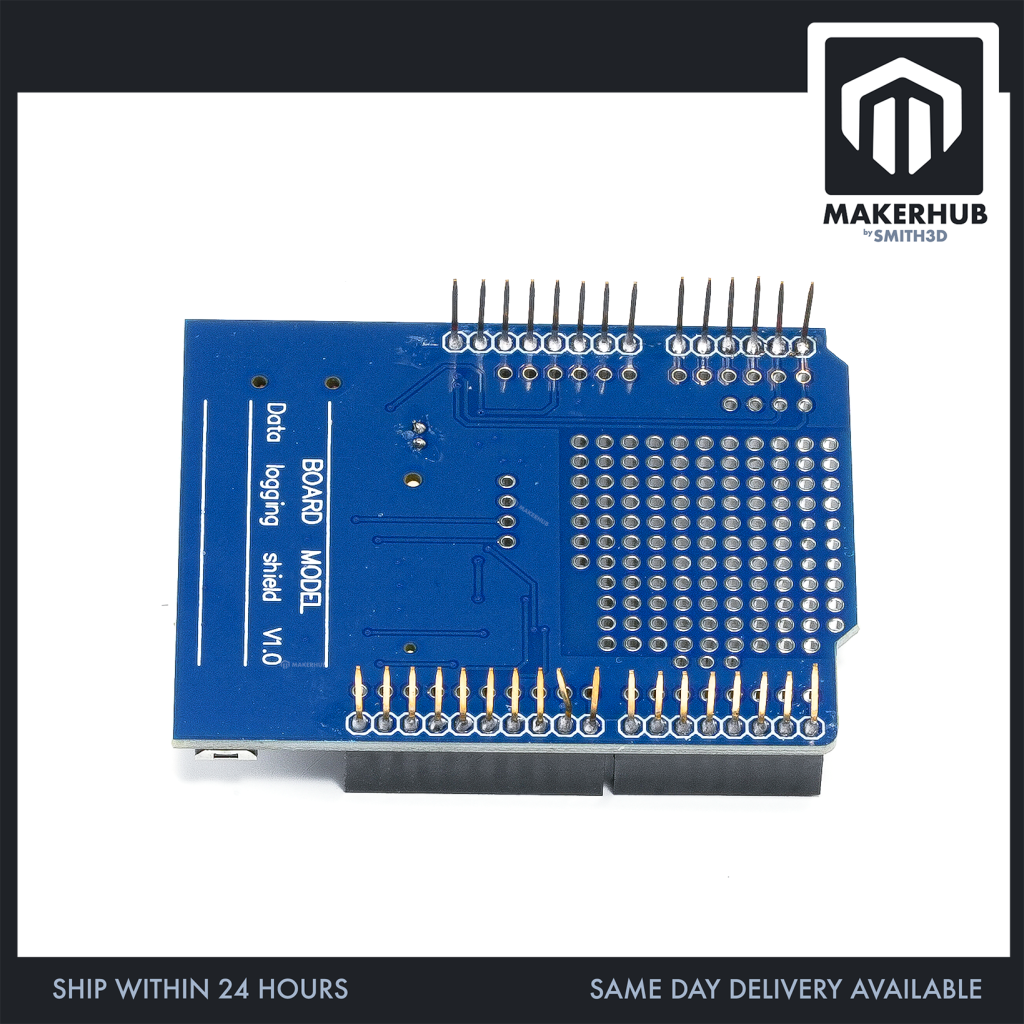

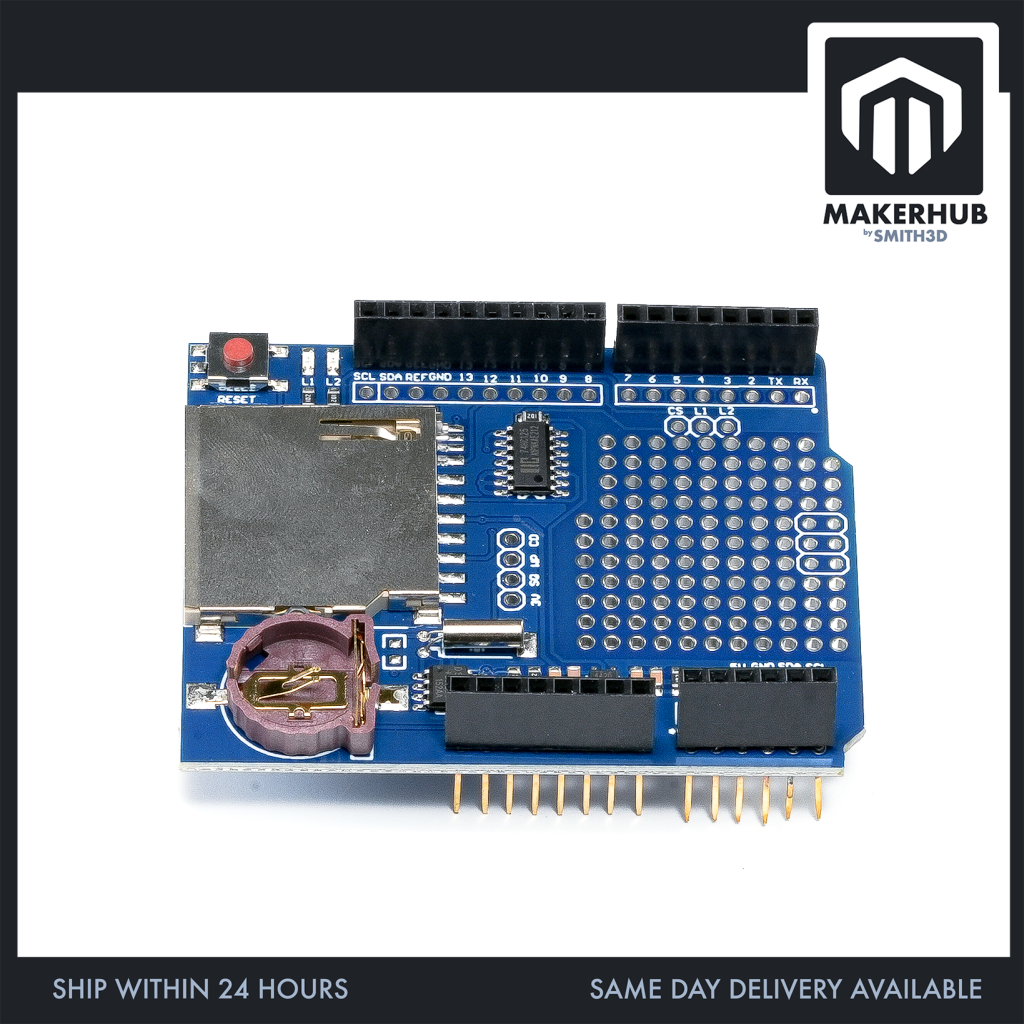

Data Logging Shield Data Logger Module Data Recorder with Built in RTC For Arduino IOT Application

✅ Ready Stock in KL(Sungai Besi)
🔥 Ship within 24 hours from KL on working hours | Monday to Saturday, ( 10:00 AM to 6:00 PM ), Closed on Sunday
🚚 Same Day Delivery Available For Klang Valley Customers.
☎️ Message us via Shopee Chat or Whatsapp +6011 – 6166 5388 to arrange same day delivery or for product enquiry


Introducing the Arduino Data Logging Shield, the perfect tool for DIY enthusiasts looking to record sensor data with ease. This shield empowers your Arduino Uno, Leonardo, or Mega to effortlessly log data to an SD card, making it a breeze to track and analyze your projects. With its built-in DS1307 real-time clock module, you can trust that your data will be accurately timestamped, even when the shield isn’t powered. The shield also features a handy prototyping area, allowing you to add your own sensors and components to take your projects to the next level. Whether you’re a seasoned maker or just starting out, the Arduino Data Logging Shield is your go-to solution for reliable data logging.


⭐ Specification
– Compatible with Arduino Uno, Leonardo, and Mega boards
– Includes DS1307 battery-backed real-time clock module for accurate timekeeping
– Supports SD cards up to 32GB, formatted as FAT16 or FAT32
– Built-in level shifting circuitry to protect your SD card’s 3.3V interface
– Prototyping area with a grid of pads on a standard 0.1″ pitch for adding custom components
– Two additional LEDs (L1 & L2) that can be mapped to any digital pin for visual indicators
– Standard Arduino headers for stacking additional compatible shields


⚒️ Interesting Project
1. Weather Station: Create your own mini weather station by connecting temperature, humidity, and pressure sensors to track and log environmental data over time.
2. Plant Monitor: Build a smart plant monitoring system that logs soil moisture levels, light intensity, and temperature to ensure your plants stay healthy and thriving.
3. Energy Consumption Tracker: Monitor your home’s energy usage by logging data from current sensors attached to your appliances, helping you identify areas for energy savings.
4. GPS Logger: Combine the shield with a GPS module to create a portable GPS logger that records your location data for outdoor adventures or vehicle tracking.


📦 Package Includes:
– 1x MT3608 BOOST CONVERTOR


31
