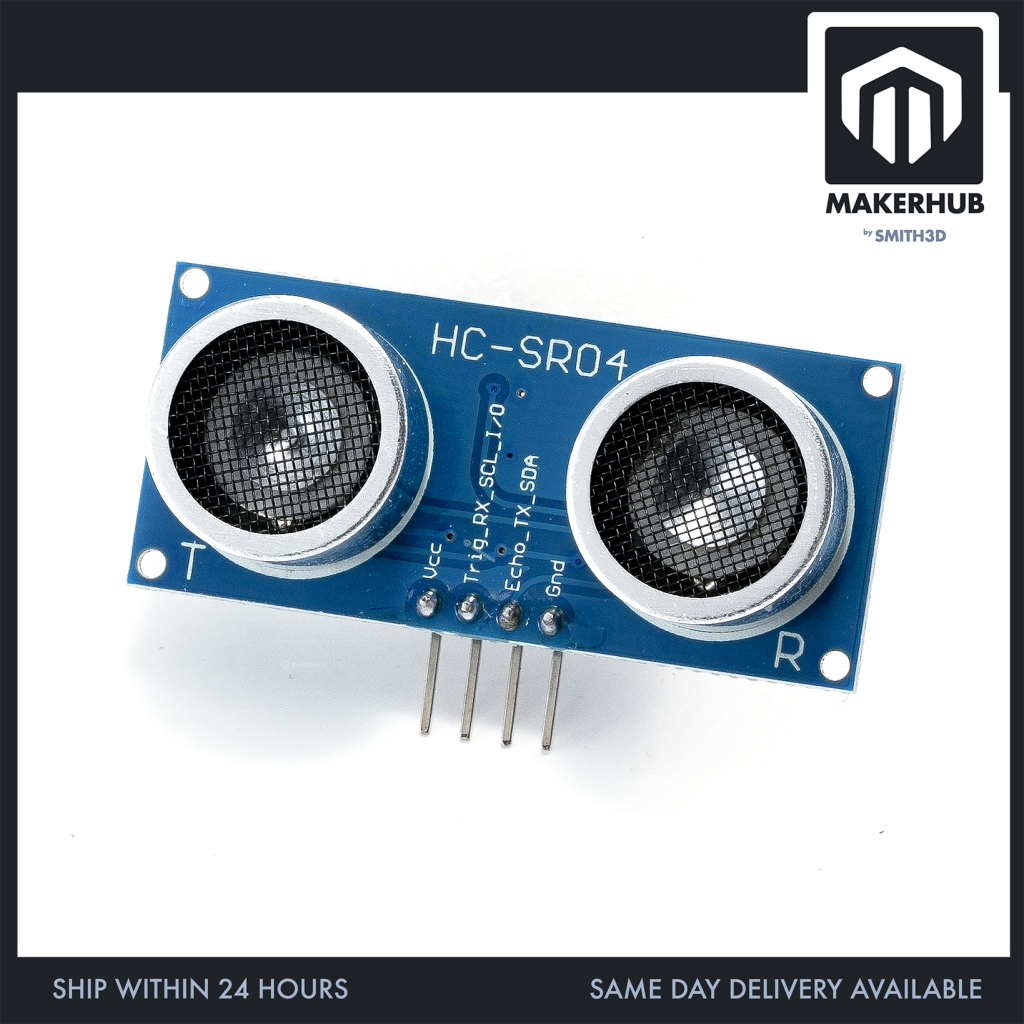

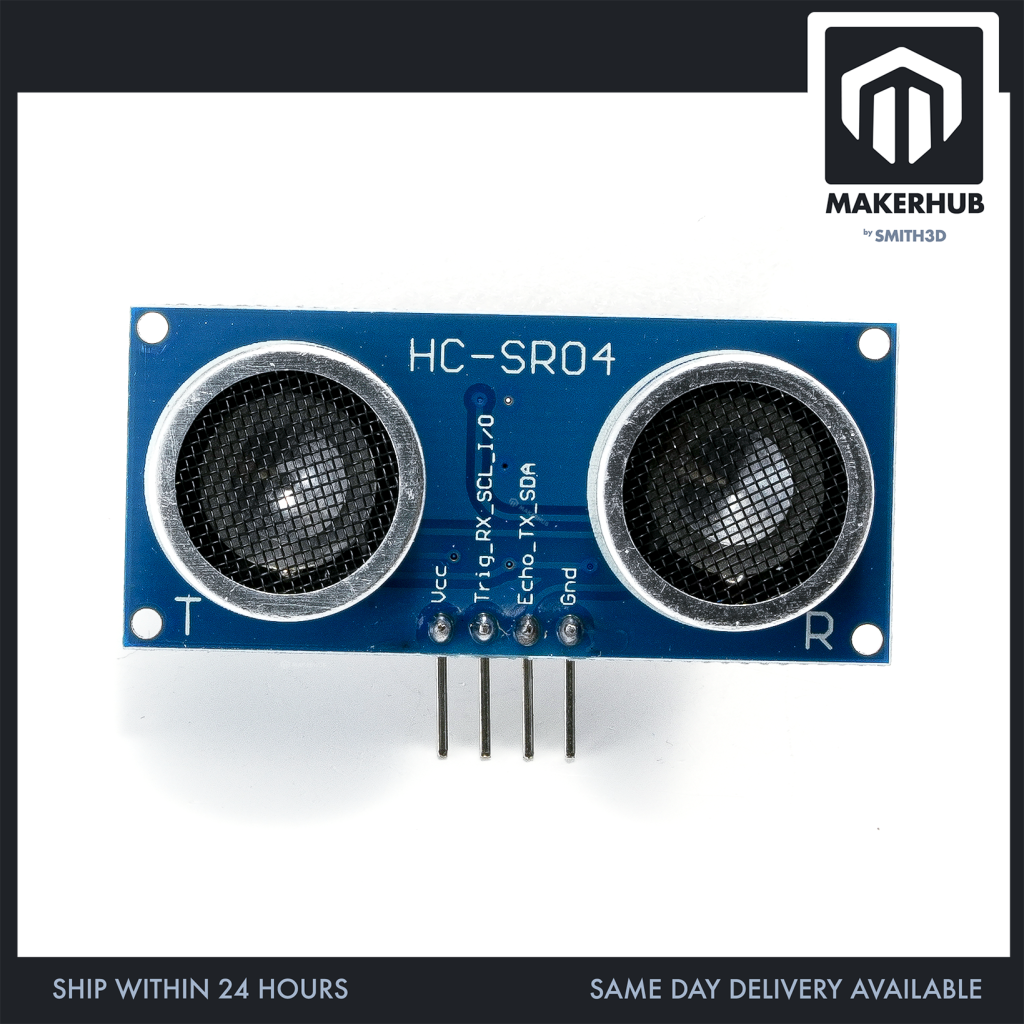

Ultrasonic Sensor HC-SR04 Ultrasonic Range Detection Distance Finder Obstacle avoidance For Arduino Application

✅ Ready Stock in KL(Sungai Besi)
🔥 Ship within 24 hours from KL on working hours | Monday to Saturday, ( 10:00 AM to 6:00 PM ), Closed on Sunday
🚚 Same Day Delivery Available For Klang Valley Customers.
☎️ Message us via Shopee Chat or Whatsapp +6011 – 6166 5388 to arrange same day delivery or for product enquiry


The HC-SR04 Ultrasonic Sensor is a must-have for any robotics enthusiast or maker looking to add obstacle detection and distance measurement capabilities to their projects. With a range of 2cm to 400cm, this sensor offers reliable performance and high accuracy, making it perfect for a wide variety of applications. Its easy-to-use package and simple interface with Arduino boards and other microcontrollers make it a breeze to integrate into your projects.


⭐ Specification
– Operating voltage: 5V DC
– Operating current: 15mA
– Operating frequency: 40KHz
– Maximum reading distance: 400cm
– Minimum reading distance: 2cm
– Detection angle: 15°
– Resolution: 0.5cm
– Trigger pulse: >10μs TTL pulse
– Output pulse proportional to distance
– Maximum pulse width: 38ms if no obstacle
– Dimensions: 45 x 20 x 15 mm


⚒️ Interesting Project
1. Obstacle Avoidance Robot: Build a robot that can navigate around obstacles using the HC-SR04 sensor. Learn about sensor integration, motor control, and basic robotics principles.

2. Automatic Door Opener: Create a smart home device that automatically opens doors when someone approaches. Discover how to use the sensor for proximity detection and control servo motors.

3. Parking Assist System: Develop a miniature parking assist system using the HC-SR04 sensor to help you park your RC car or robot without collisions. Learn about distance measurement and providing visual or audible feedback.

4. Water Level Monitoring: Use the sensor to monitor water levels in a tank or container for an automated watering system or aquarium maintenance. Explore how to measure liquid levels and trigger actions based on the readings.


📦 Package Includes:
– 1x ULTRASONIC SENSOR
