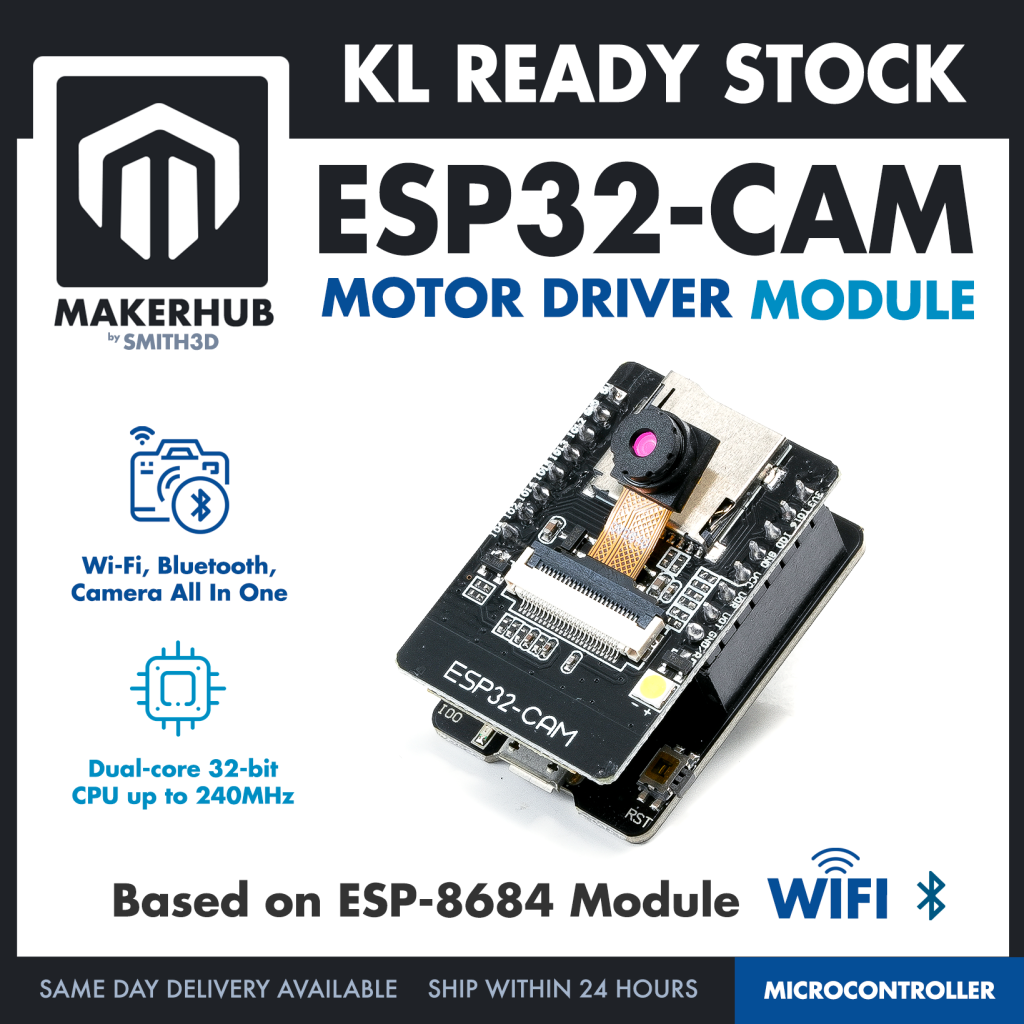

NodeMCU ESP32 CAM Wi-Fi Bluetooth Camera Board OV2640 / RHYX-M21-45 with CH340/CP2012

✅ Ready Stock in KL(Sungai Besi)
🔥 Ship within 24 hours from KL on working hours | Monday to Saturday, ( 10:00 AM to 6:00 PM ), Closed on Sunday
🚚 Same Day Delivery Available For Klang Valley Customers.
☎️ Message us via Shopee Chat or Whatsapp +6011 – 6166 5388 to arrange same day delivery or for product enquiry


Unleash your next IoT vision project with the versatile ESP32-CAM module! This compact board powerhouse packs an ESP32-S chip offering both WiFi and Bluetooth connectivity, paired with the popular OV2640 2-megapixel camera. It’s a fantastic bit of kit for hobbyists and pros alike. Snapping pictures or streaming video is made easy, and with the onboard Micro USB port, getting your code on board is straightforward. Store your captures on a microSD card (slot included). Whether you’re building a smart home security cam, a wildlife monitor, or a QR code reader, this module is ready to go. Available as the standard ‘OV2640 ESP32-CAM’ or the ‘RHYX-M21-45 ESP32 CAM’ model variant – both deliver the same great core performance for your creative electronics projects.


⭐ Specification

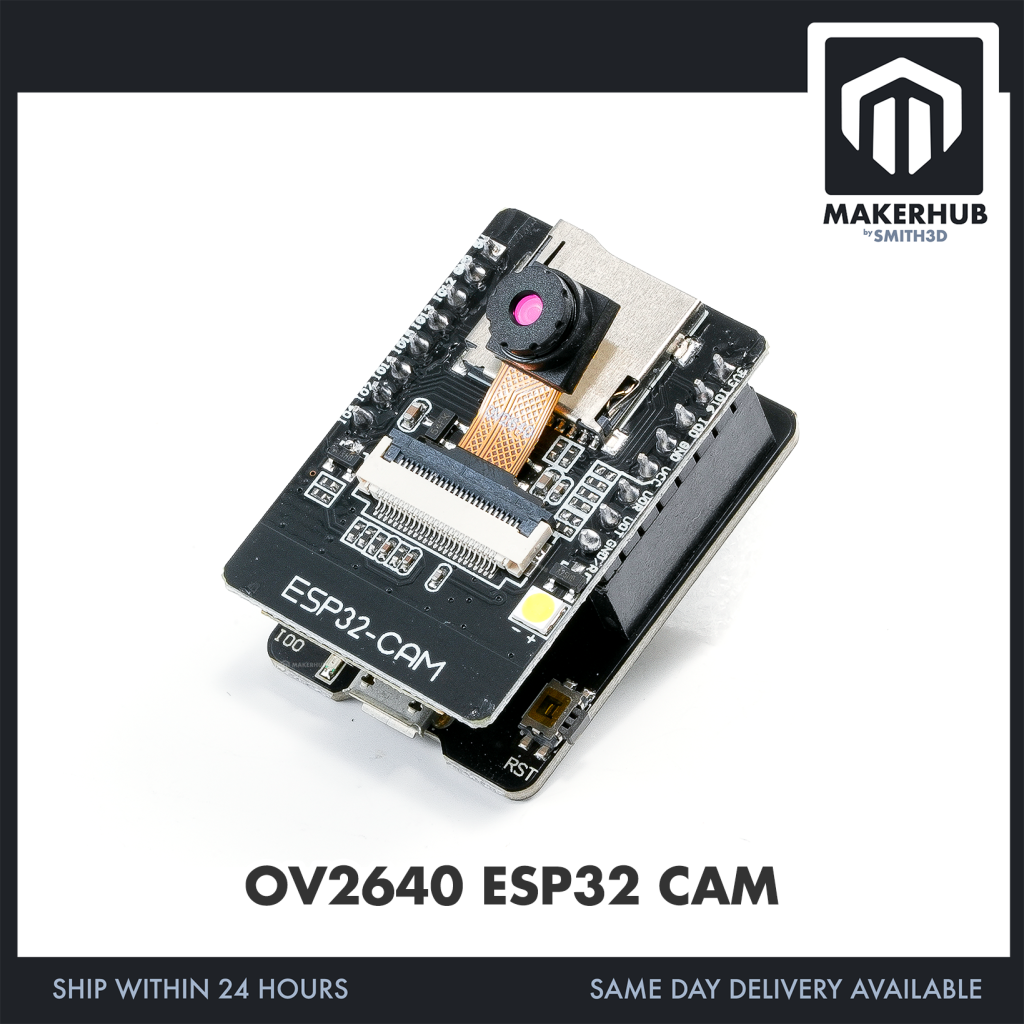

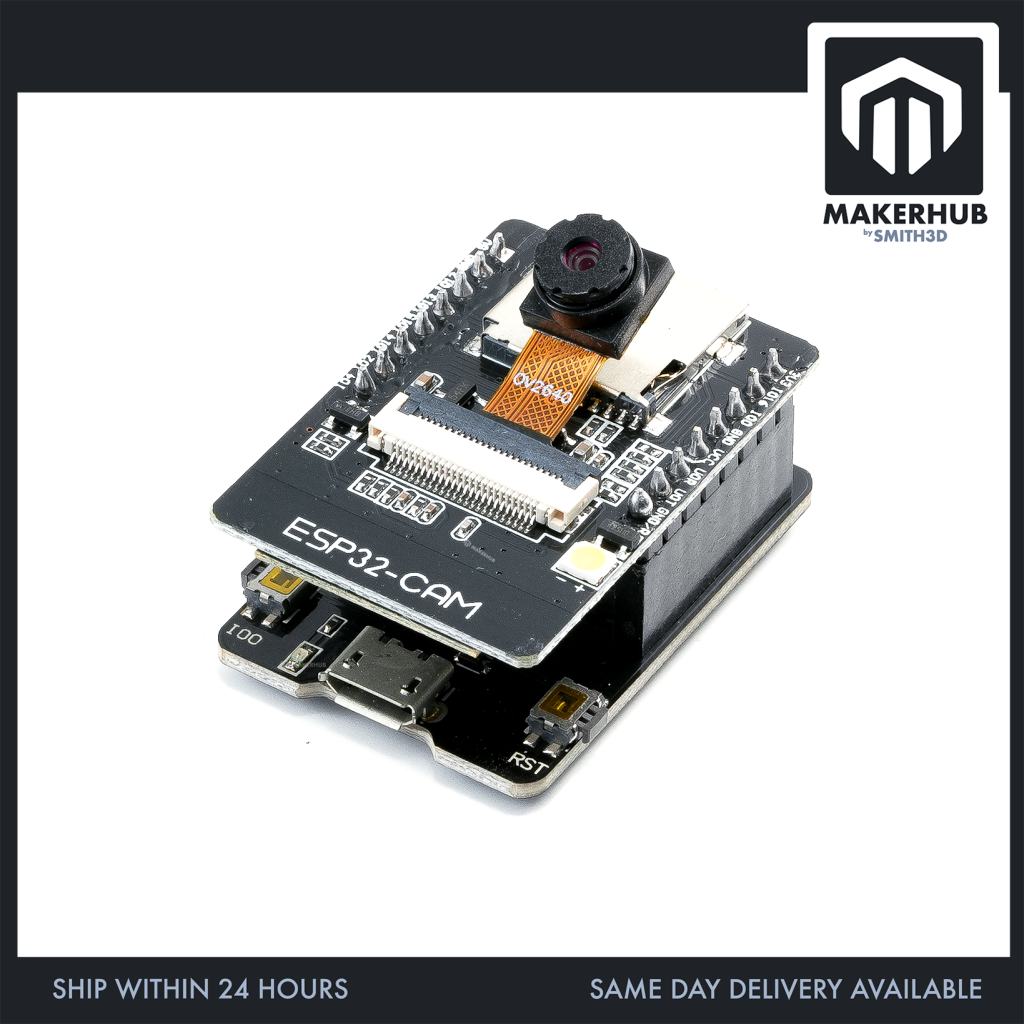

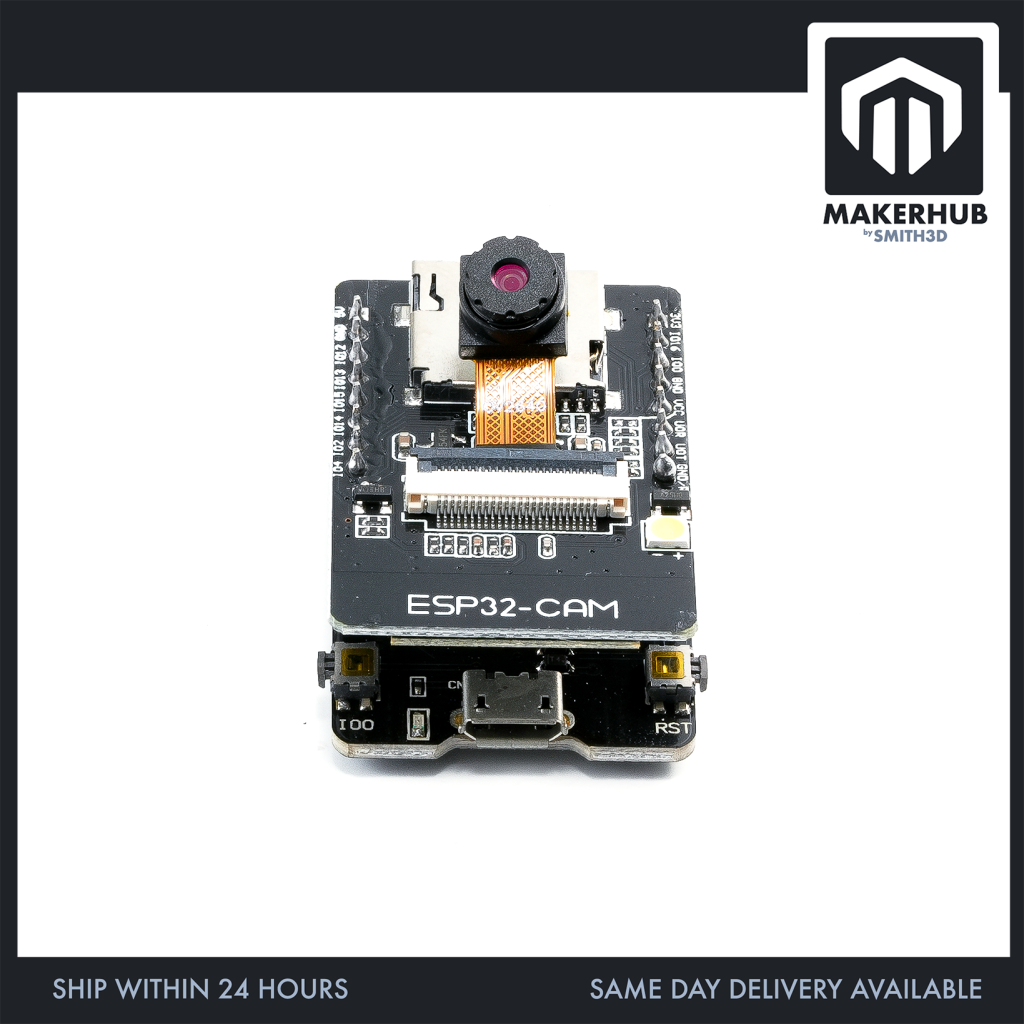

OV2640 ESP32-CAM:
– Module: ESP32-CAM
– Microcontroller: ESP32-S Dual Core
– Camera Sensor: OV2640
– Image Resolution: 2 Megapixel (UXGA 1622×1200)
– Operating Voltage: 5V (via Micro USB port or 5V pin); 3.3V (via 3.3V pin)
– Connectivity: WiFi 802.11 b/g/n, Bluetooth 4.2 BR/EDR & BLE standards
– Storage: MicroSD card slot (supports FAT format; capacity varies, e.g., up to 4GB typically supported, higher capacities like 32GB or 64GB may work but depend on specific card and firmware)
– Programming Interface: Micro USB port (usually features an onboard CH340G or similar USB-to-Serial converter for direct programming from a PC)
– GPIO Pins: Multiple available for user peripherals (e.g., I2C, SPI, UART access)
– Dimensions (Board Only): Approx. 40.5mm x 27mm x 4.5mm (camera module and lens add to overall height)
– Antenna: Onboard PCB antenna. Some variants may include an IPEX connector for an external antenna (confirm with specific board if external antenna is crucial).
– Flash LED: Onboard high-brightness LED, can be used as a flash.
– Low Power: Supports deep sleep mode for low power consumption (as low as 6mA).

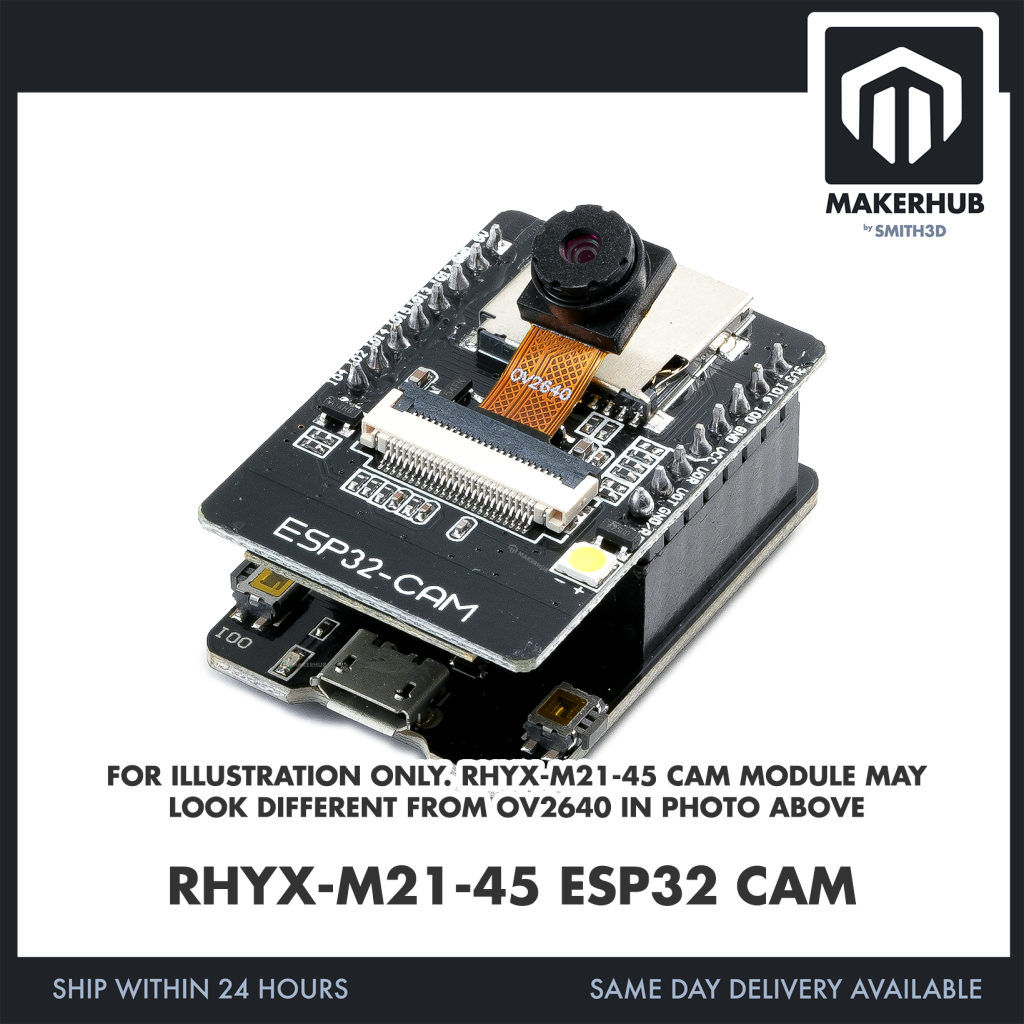

RHYX-M21-45 ESP32 CAM:
– Model Identifier: RHYX-M21-45.
– The main difference between ESP32 CAM modules with OV2640 and RHYX M21-45 cameras lies in their pixel format support. OV2640 supports both JPEG and RGB565, while RHYX M21-45 primarily uses RGB565 and may not directly support JPEG. This means that when using an ESP32 CAM with an RHYX M21-45 camera, you’ll likely need to process the image data in RGB565 format and may need to handle compression or conversion if you need JPEG output.

Quick Guide for Selecting Variation:
– Choose ‘OV2640 ESP32-CAM’ for the widely recognized standard module.
– Choose ‘RHYX-M21-45 ESP32 CAM’ if this specific model number (RHYX-M21-45) is required for your project, documentation, or if it’s the variant currently in stock. Functionally, both offer the same robust camera and wireless capabilities for your IoT projects.


⚒️ Interesting Project
DIY Wireless Security Camera
Build a Web-Controlled Pet Feeder Cam
Create a Time-Lapse Photography Rig


📦 Package Includes:
ESP32-CAM BOARD x 1
USB Programmer x1
