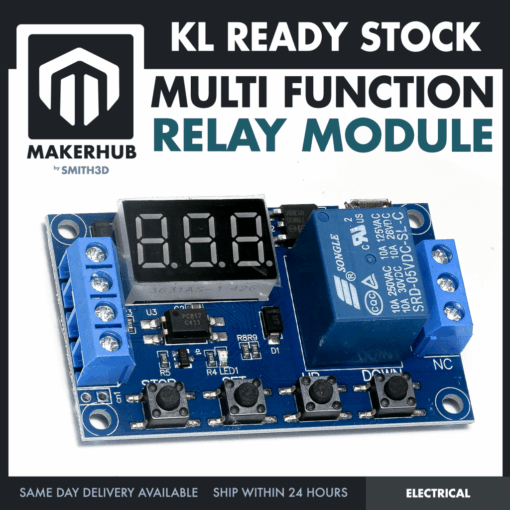

Multi Function Relay Module Time Delay Timer Switch Control Board DC 12V 24V AC 110V 220V Programmable Automation

✅ Ready Stock in KL(Sungai Besi)
🔥 Ship within 24 hours from KL on working hours | Monday to Saturday, ( 10:00 AM to 6:00 PM ), Closed on Sunday
🚚 Same Day Delivery Available For Klang Valley Customers.
☎️ Message us via Shopee Chat or Whatsapp +6011 – 6166 5388 to arrange same day delivery or for product enquiry

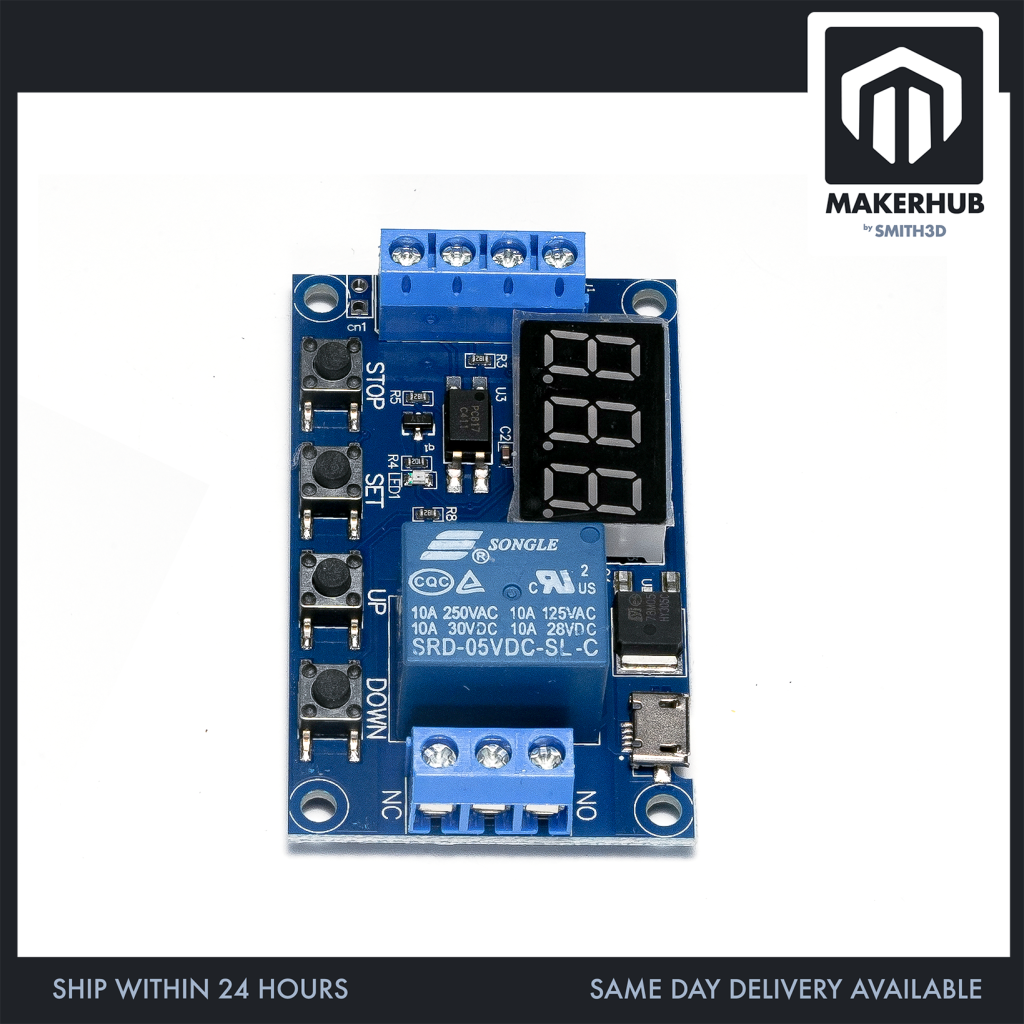

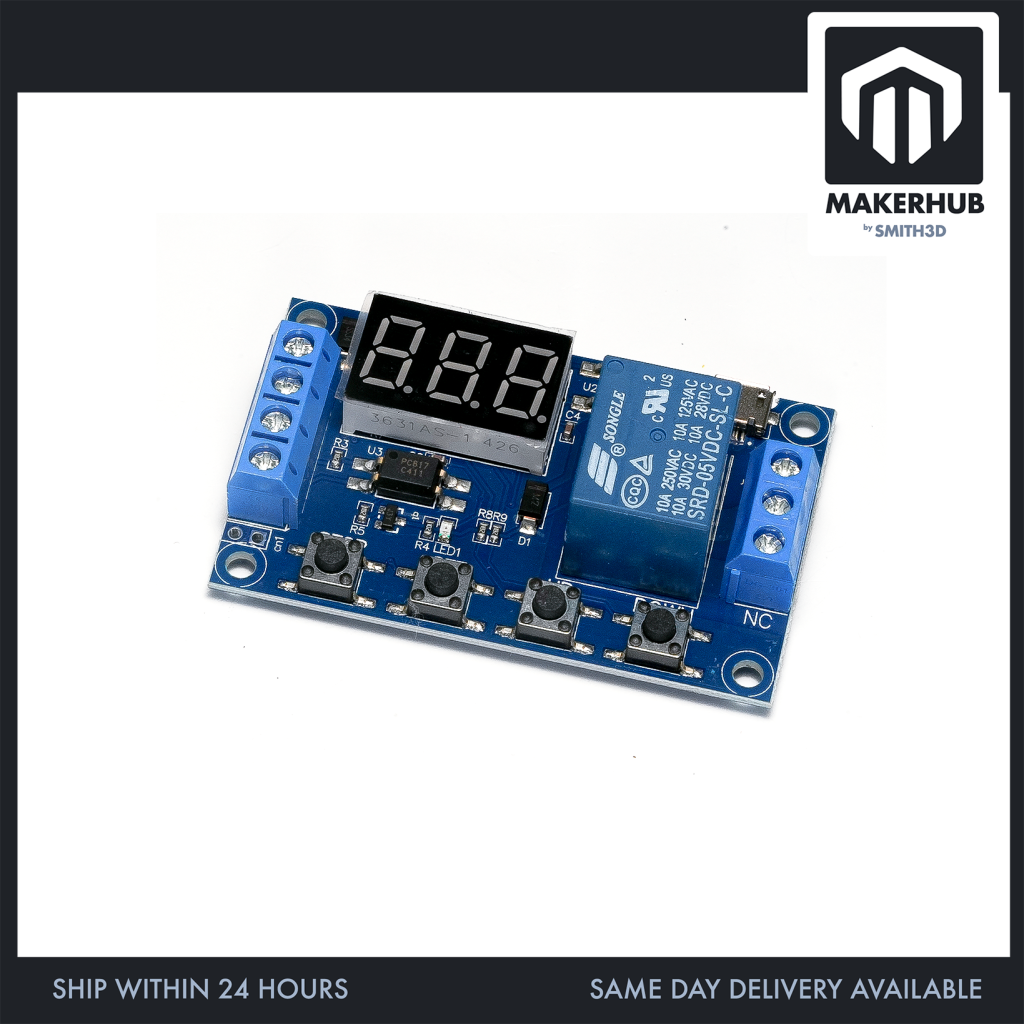

This versatile multi-function relay module is a real workhorse for your DIY electronics projects! Featuring the reliable Songle SRD-05VDC-SL-C relay, it allows you to control higher power devices with a low-voltage signal. The built-in 3-digit LED display and push buttons make it a breeze to program various timing functions, from simple delays to complex cycles. You can set delay times from a swift 0.1 seconds all the way up to 999 minutes. It’s super handy for automation tasks, controlling lights, motors, or any gadget that needs timed operation. Power it up easily via its micro USB port or the screw terminals (typically supporting 6-30V DC input if present for that purpose; always confirm your specific unit’s input method and voltage for terminals). The relay can switch loads up to 10A at 250VAC or 30VDC. With multiple operating modes, it’s a flexible solution for many applications.


⭐ Specification
– Model: Programmable Timer Relay (features Songle SRD-05VDC-SL-C)
– Module Operating Voltage: 6-30V DC (via terminals, if applicable for input) / 5V DC (via Micro USB)
– Relay Contact Rating: 10A 250VAC / 10A 30VDC
– Timing Range: 0.1 seconds – 999 minutes adjustable
– Trigger Voltage: 3.0V – 24V DC (High Level via terminals)
– Quiescent Current: ~20mA
– Operating Current: ~50mA
– Display: 3-digit LED
– Dimensions (L x W x H): Approx. 6.2 x 3.8 x 1.7 cm
– Weight: Approx. 27g

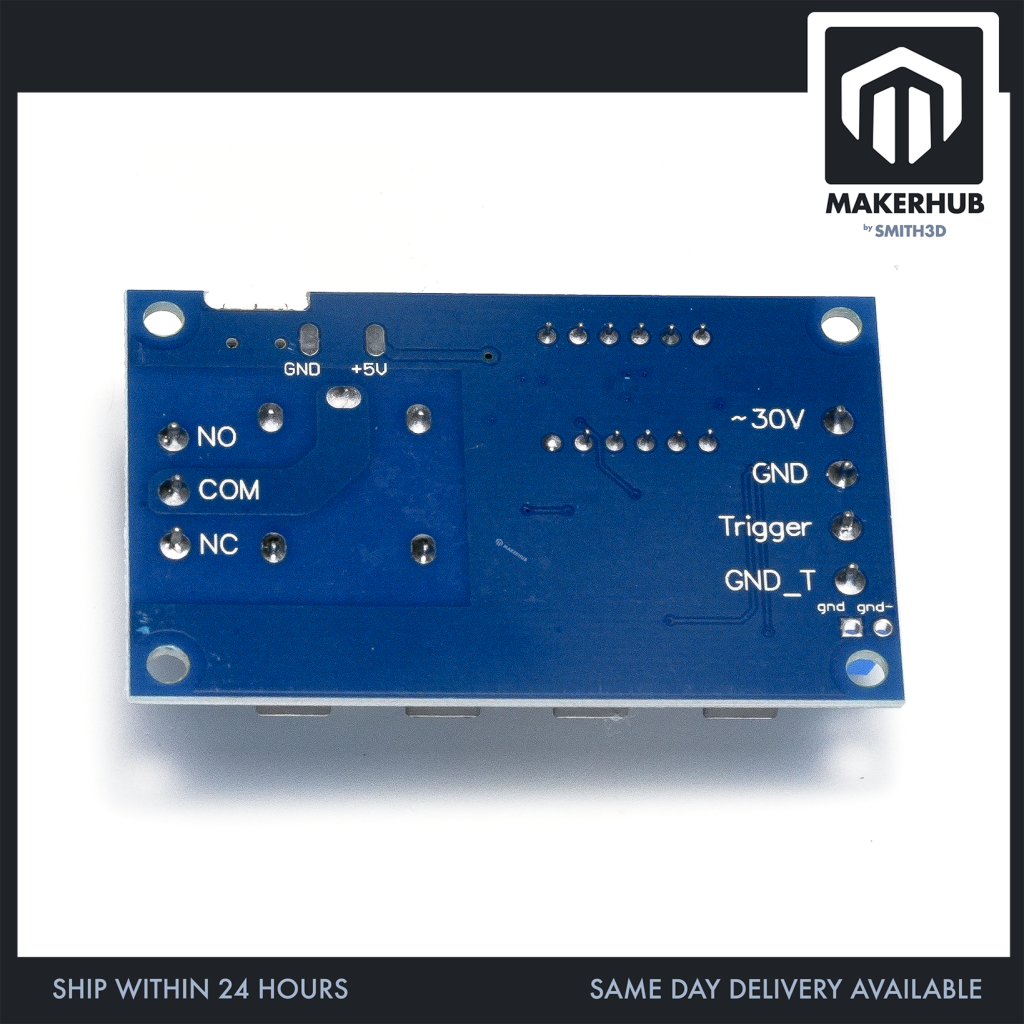

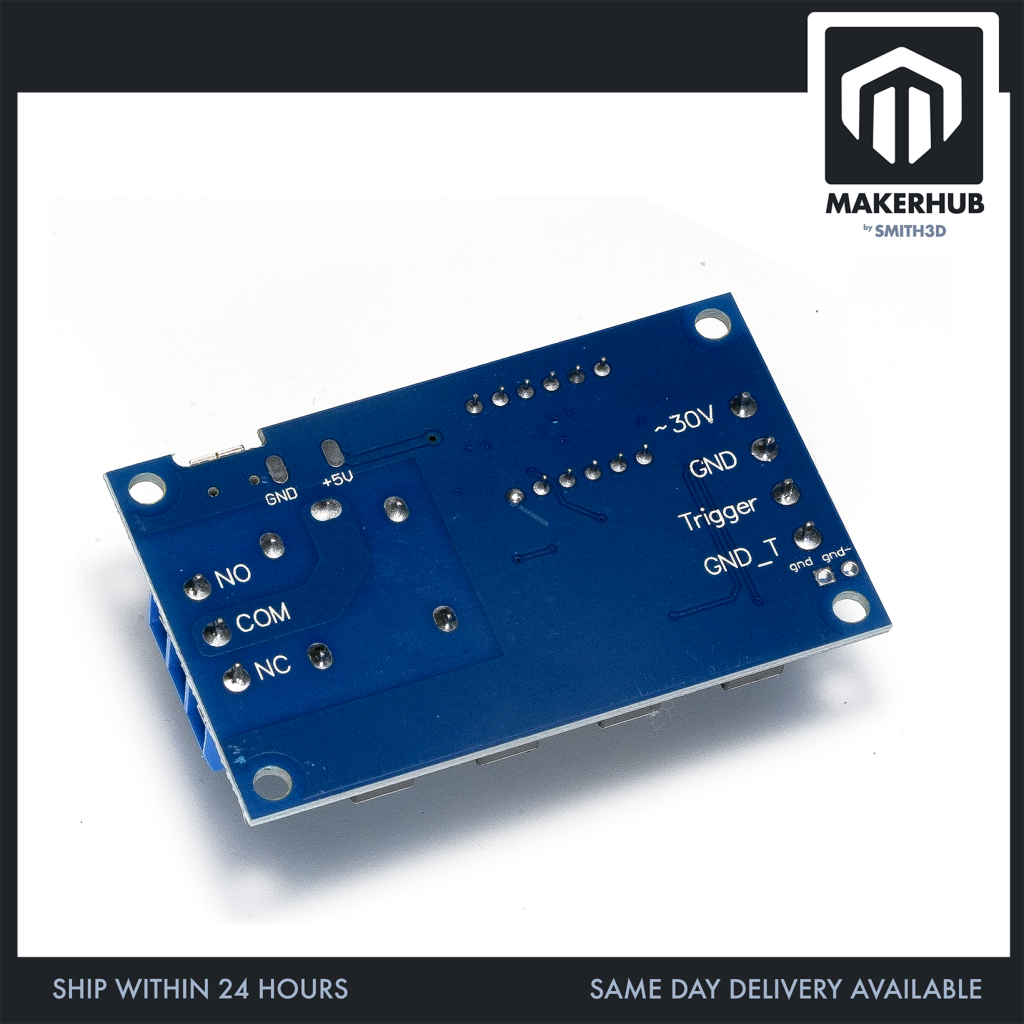

– Connection: Micro USB (power), Screw Terminals (Power In/Trigger, Relay Out: NO, COM, NC)
– Operating Modes: Multiple programmable modes (e.g., P1.1~P4)


⚒️ Interesting Project
– Automated plant watering system setup.
– Timed lighting for aquariums or terrariums.
– DIY intervalometer for camera time-lapse.
