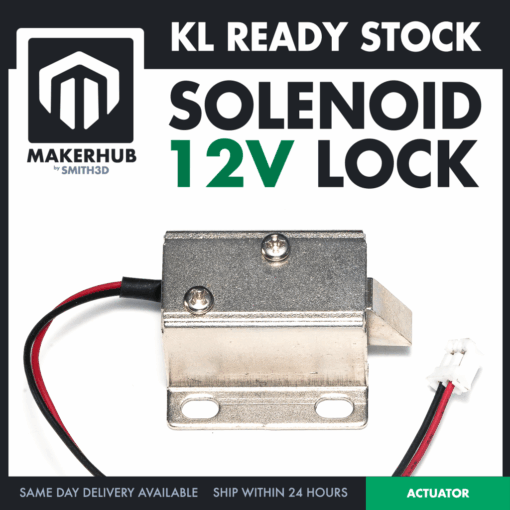

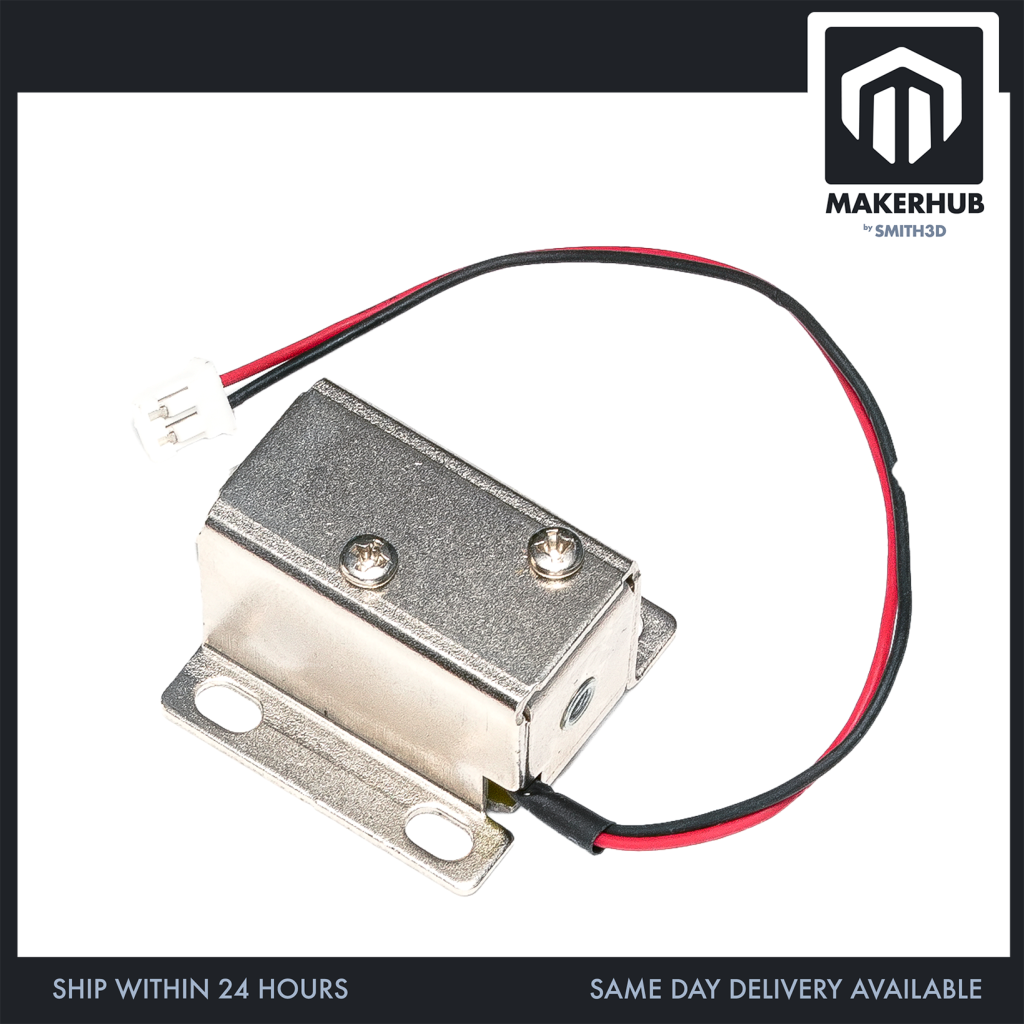

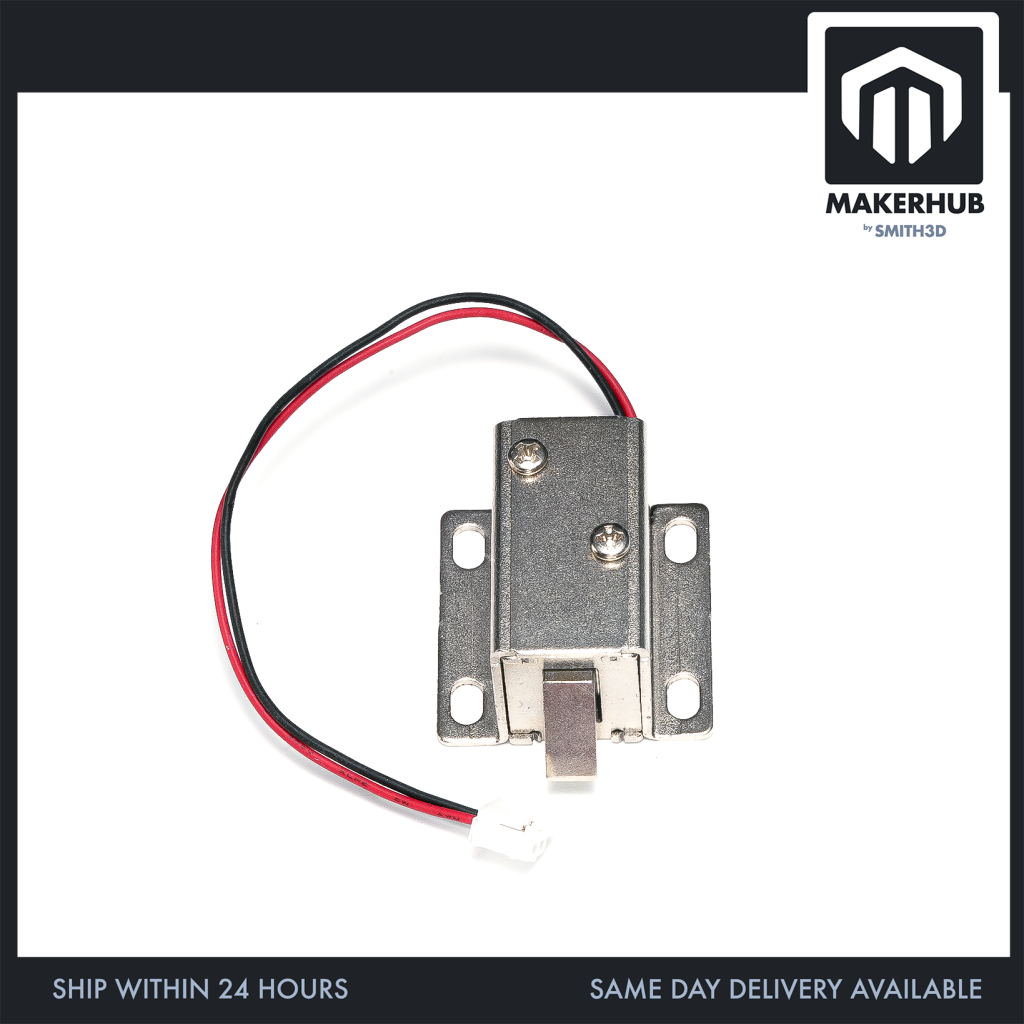

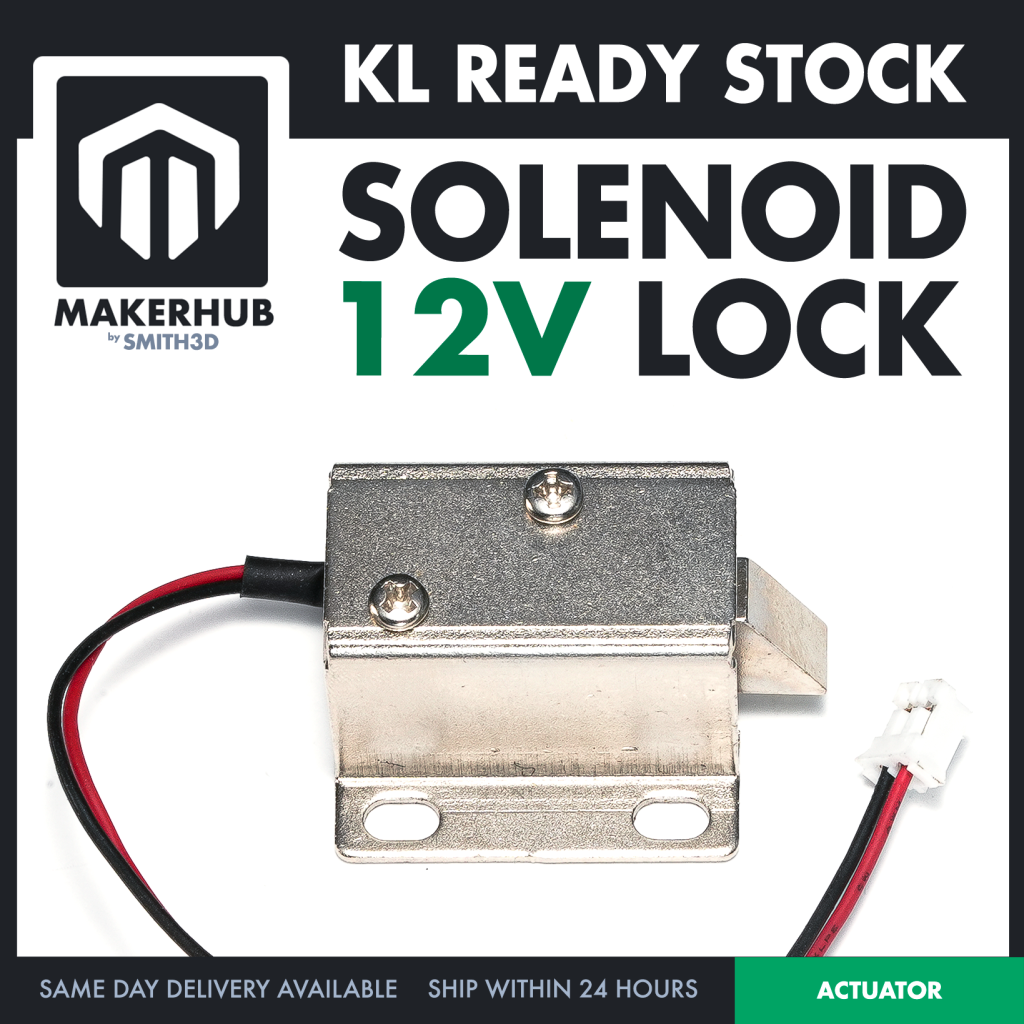

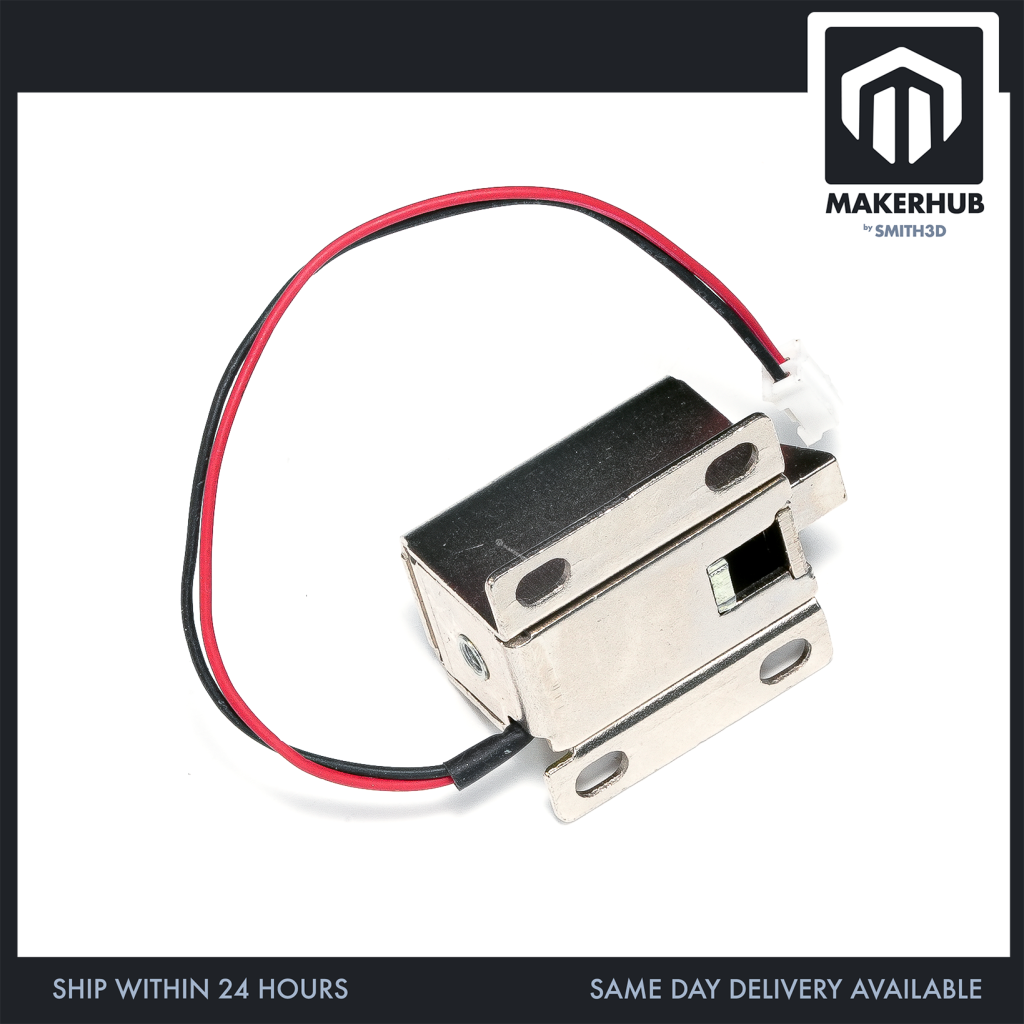

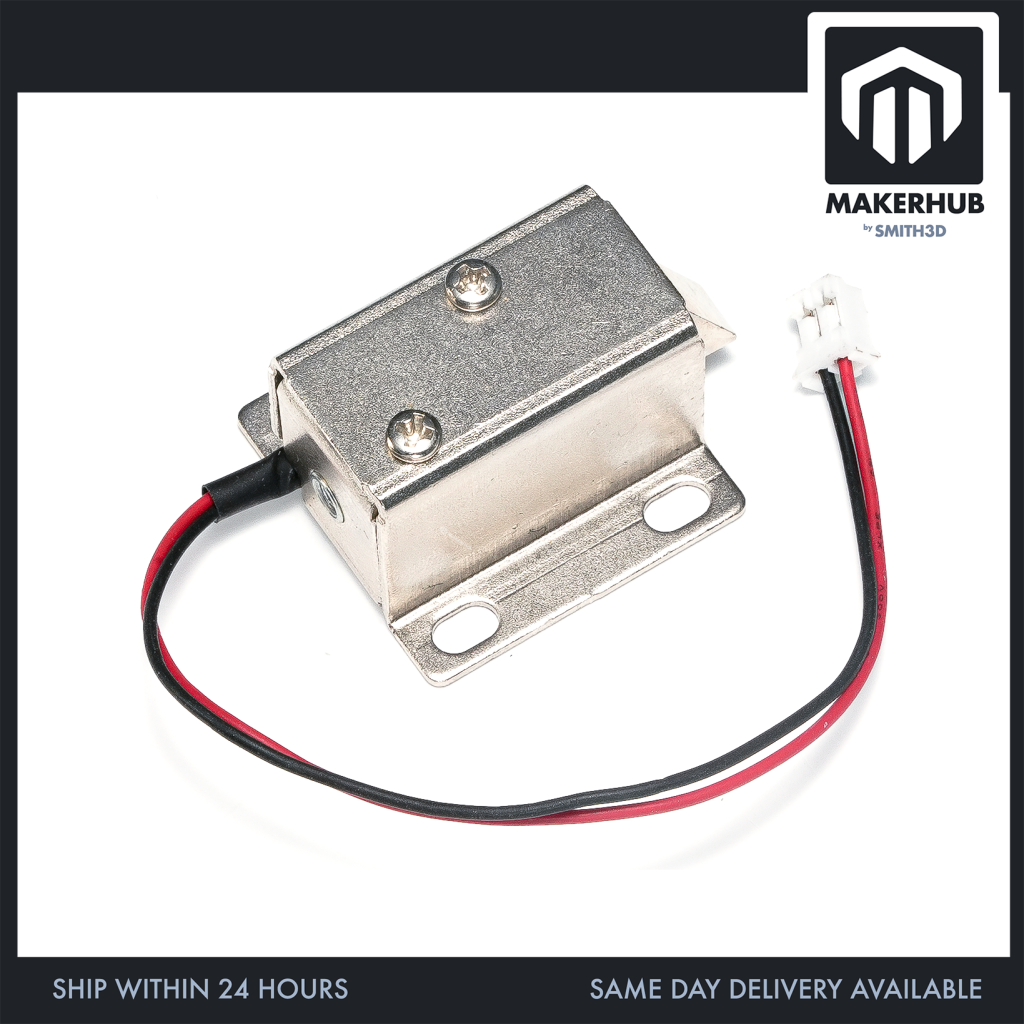

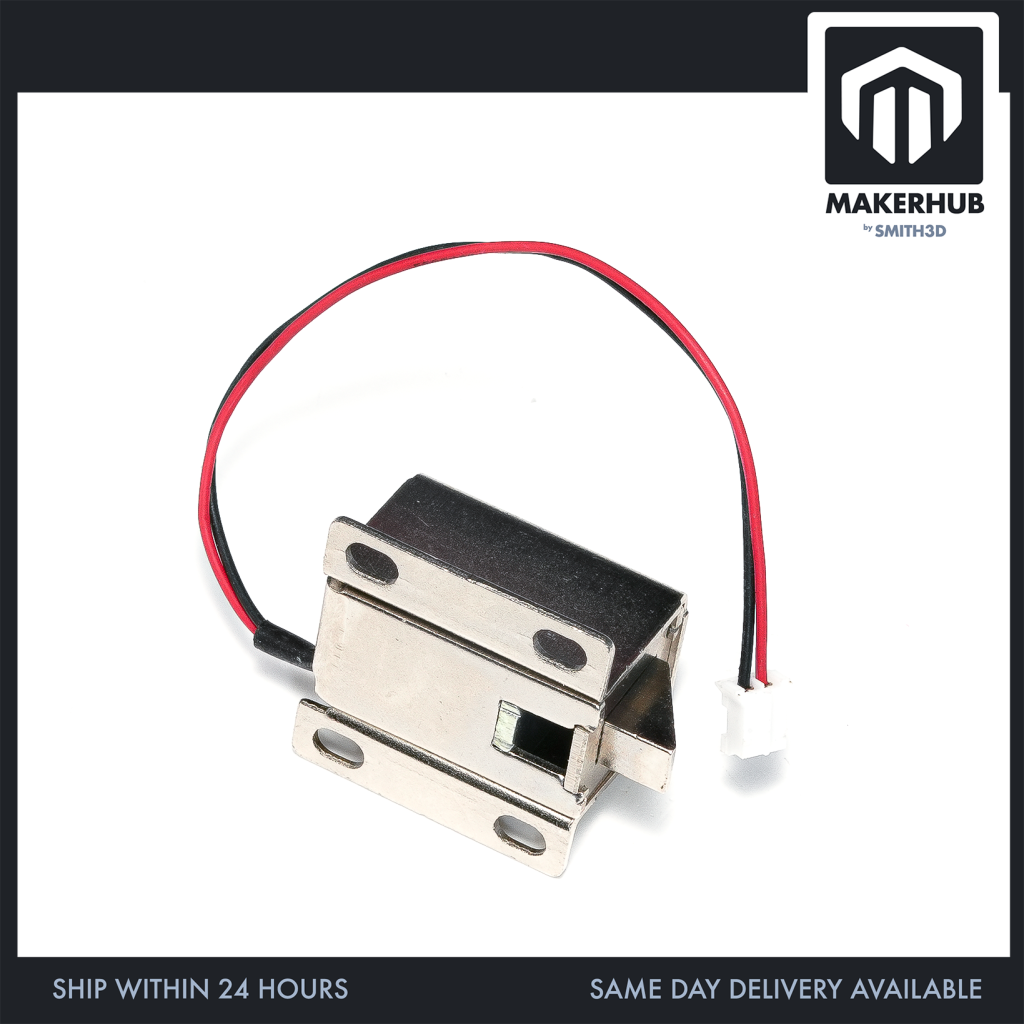

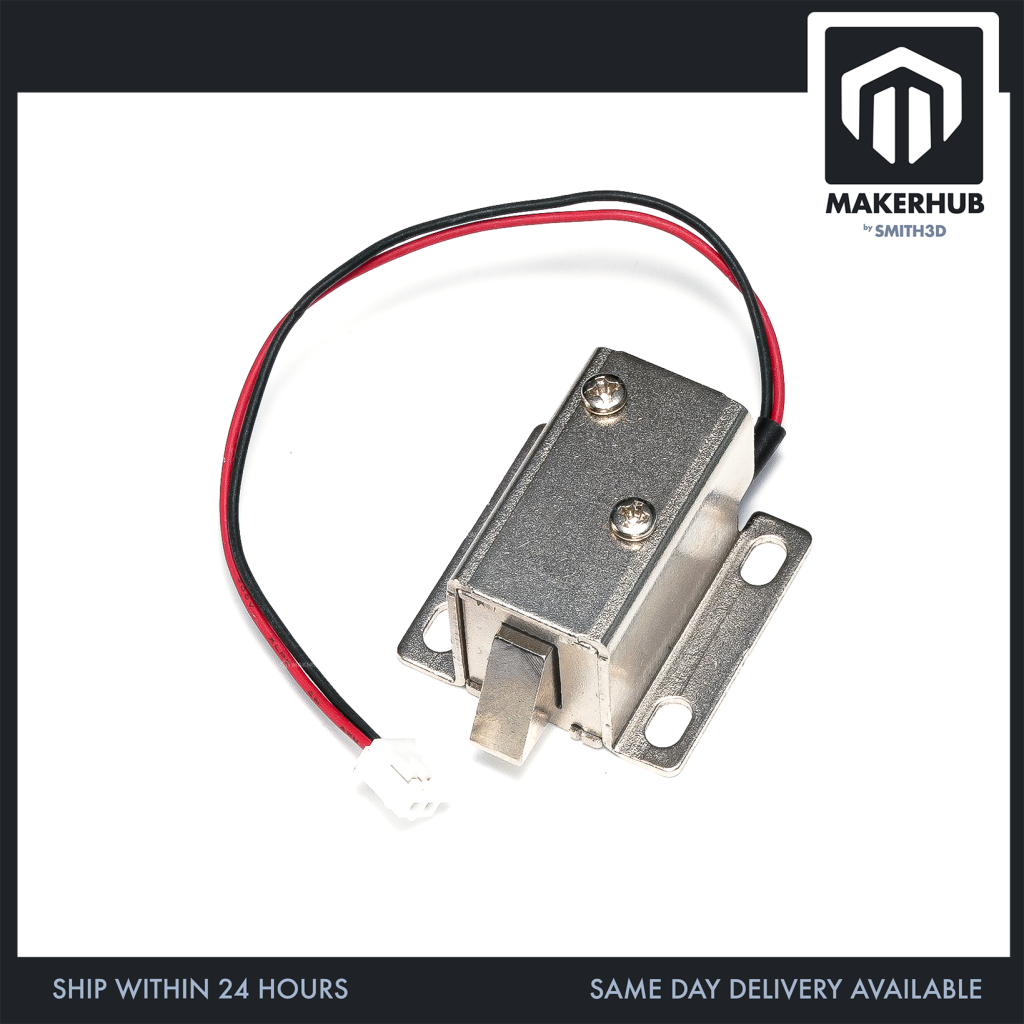

12V SOLENOID LOCK ELECTRIC LATCH FAIL-SECURE FOR CABINET DOOR DIY ROBOTICS JST CONNECTOR

✅ Ready Stock in KL(Sungai Besi)
🔥 Ship within 24 hours from KL on working hours | Monday to Saturday, ( 10:00 AM to 6:00 PM ), Closed on Sunday
🚚 Same Day Delivery Available For Klang Valley Customers.
☎️ Message us via Shopee Chat or Whatsapp +6011 – 6166 5388 to arrange same day delivery or for product enquiry


Secure your DIY projects with this robust 12V solenoid lock! It’s essentially an electronic latch, perfect for cabinets, doors, escape rooms, or enclosures. In its normal state, the metal slug is extended, keeping things locked without using any power (fail-secure). Apply 12V DC (though it often works in the 9-12V range), and the slug smartly retracts, allowing access. It features a convenient 2-pin JST connector for easy integration with your microcontroller projects (you’ll typically need a driver circuit like a transistor and diode). The sturdy mounting bracket makes installation straightforward. A great little actuator for adding physical security or interaction to your builds.


⭐ Specification
– Operating Voltage: 9-12V DC (12V nominal)
– Current Draw: ~350mA @ 12V (when active)
– Operation Mode: Fail-Secure (Normally Locked)
– Connection: 2-pin JST connector
– Mounting: Metal bracket with mounting holes


⚒️ Interesting Project
Build a secret compartment box.
Create an automated pet feeder lock.
Design an electronic door latch for a project enclosure.
