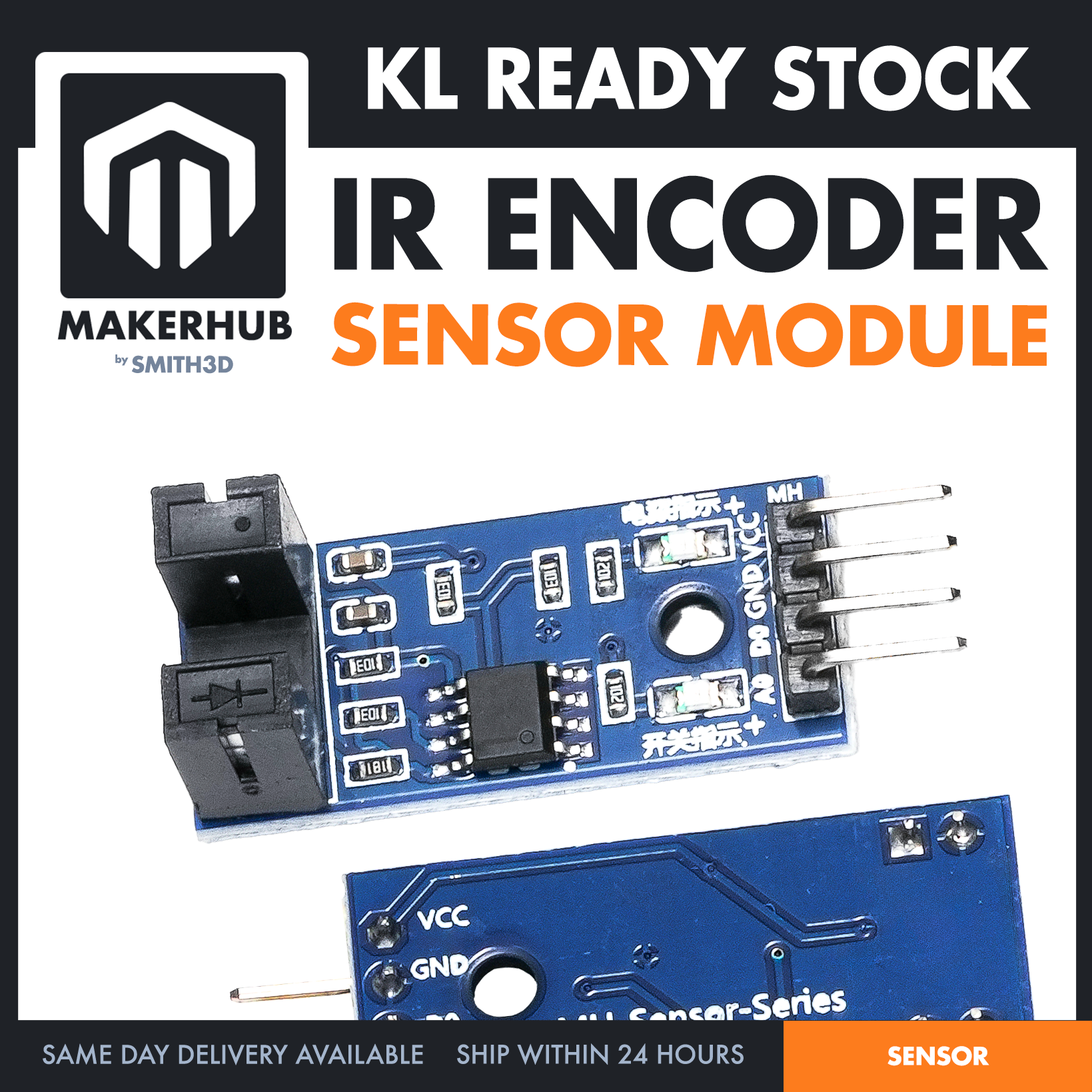

IR SPEED SENSOR MODULE FOR ARDUINO ESP32

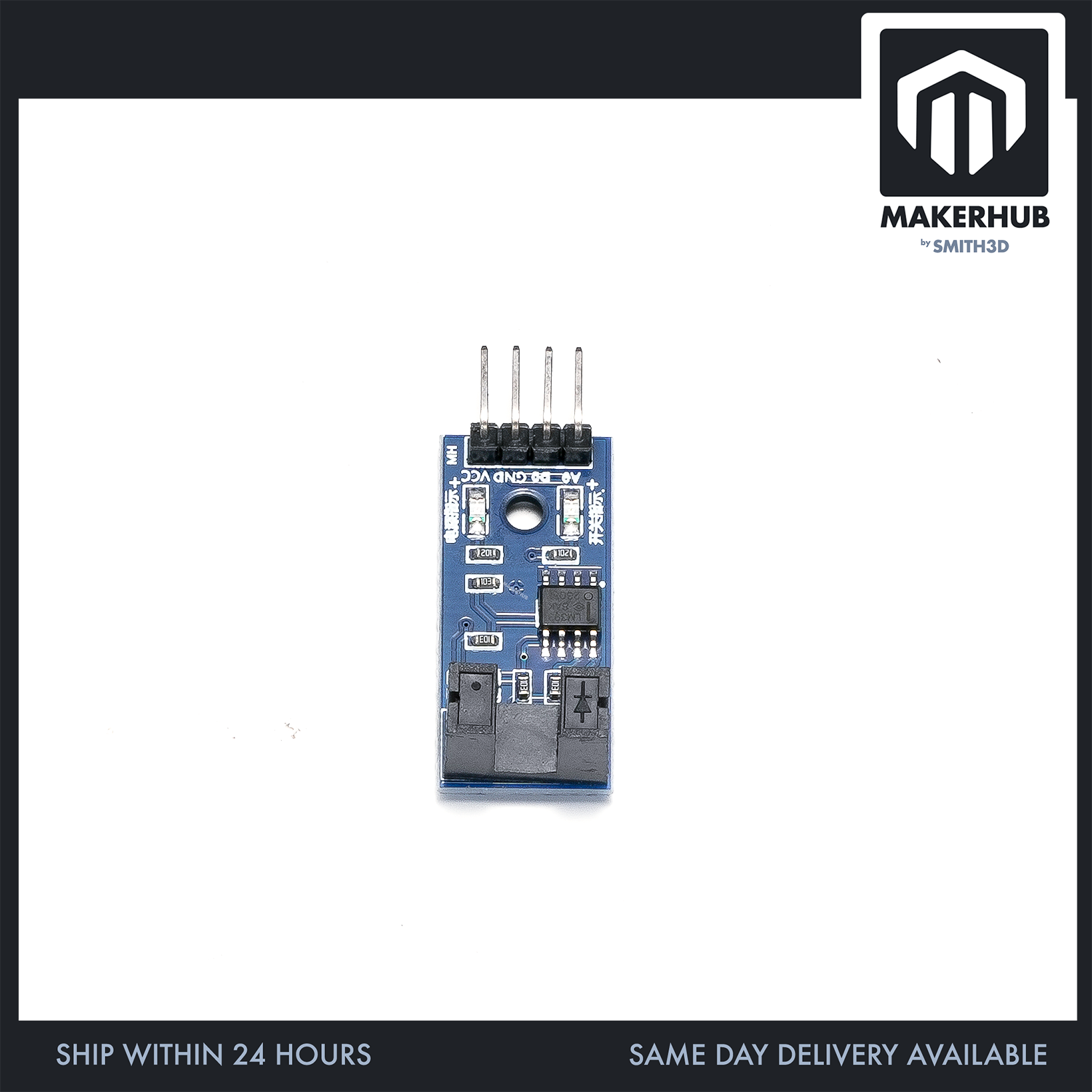

This is a versatile and easy-to-use IR (Infrared) speed sensor module, perfect for your next robotics or automation project. It’s built around a reliable LM393 comparator and features a slotted optical switch, also known as a photo-interrupter. Just slide an encoder disk (or any object) through the slot to break the IR beam, and the sensor will send a signal. It’s a piece of cake to get running. The module provides both a clean digital output (HIGH/LOW) and a raw analog output. With an onboard potentiometer, you can easily fine-tune the sensitivity for your specific needs. It’s ideal for measuring motor speed (RPM), counting rotations, or creating simple limit switches.

Feature & Specs:
– Model: Generic LM393 Module
– Operating Voltage: 3.3V – 5V DC
– Key Performance Metric: Slot Width: 10mm
– Dimensions (L x W x H): Approx. 32 x 14 x 12 mm

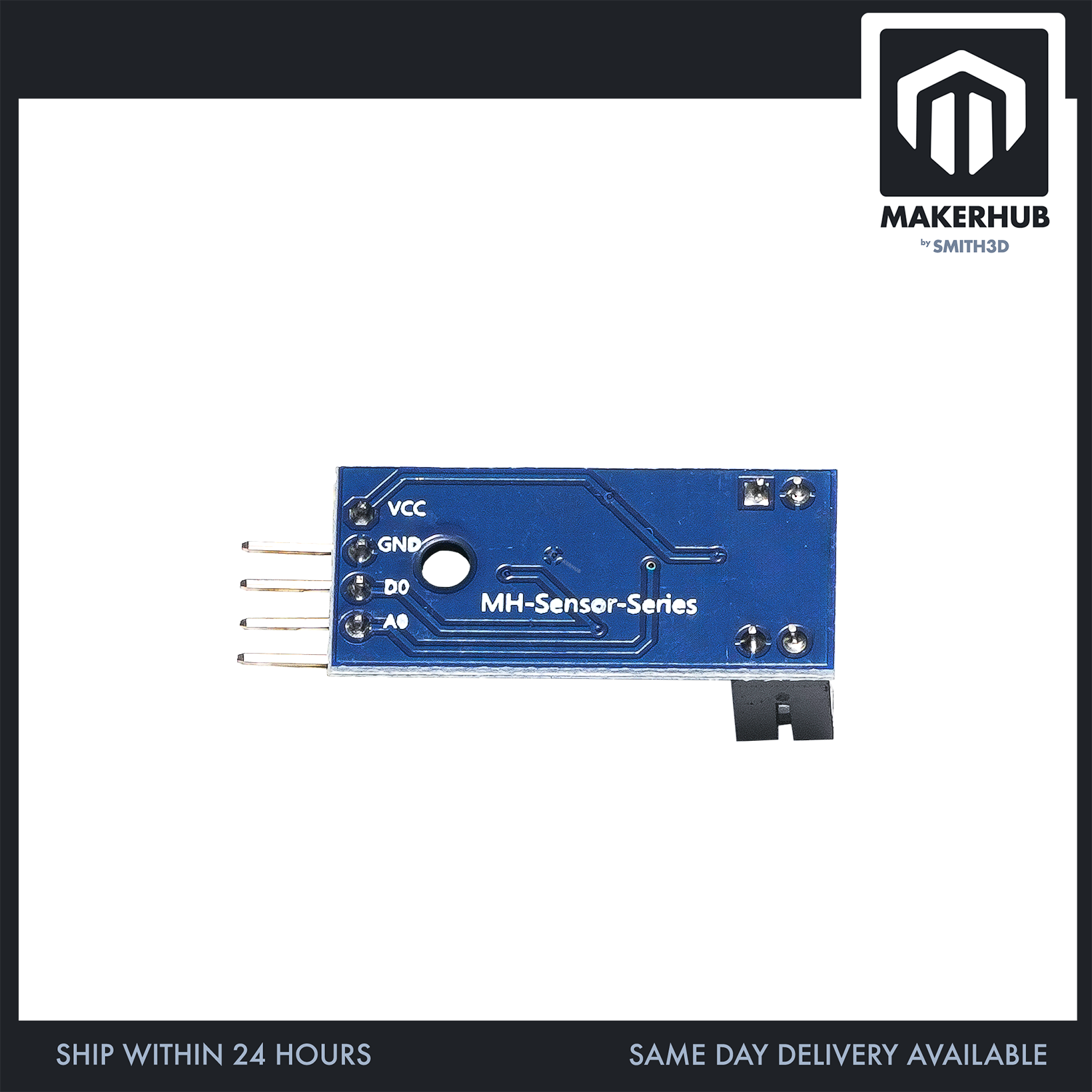

– Connection: 4-pin header (VCC, GND, D0, A0)
– Other Relevant Specs: Onboard LM393 comparator, sensitivity adjustment potentiometer, power & status LEDs

Fun Stuff To Work With:
Build a precise motor RPM tachometer.
Create a non-contact limit switch for a 3D printer.
Design an object counter for a mini conveyor belt.
