TP4056 MICRO USB 5V 1A LITHIUM LI-ION BATTERY CHARGER MODULE BOARD POWER SUPPLY

✅ Ready Stock in KL(Sungai Besi)
🔥 Ship within 24 hours from KL on working hours | Monday to Saturday, ( 10:00 AM to 6:00 PM ), Closed on Sunday
🚚 Same Day Delivery Available For Klang Valley Customers.
☎️ Message us via Shopee Chat or Whatsapp +6011 – 6166 5388 to arrange same day delivery or for product enquiry

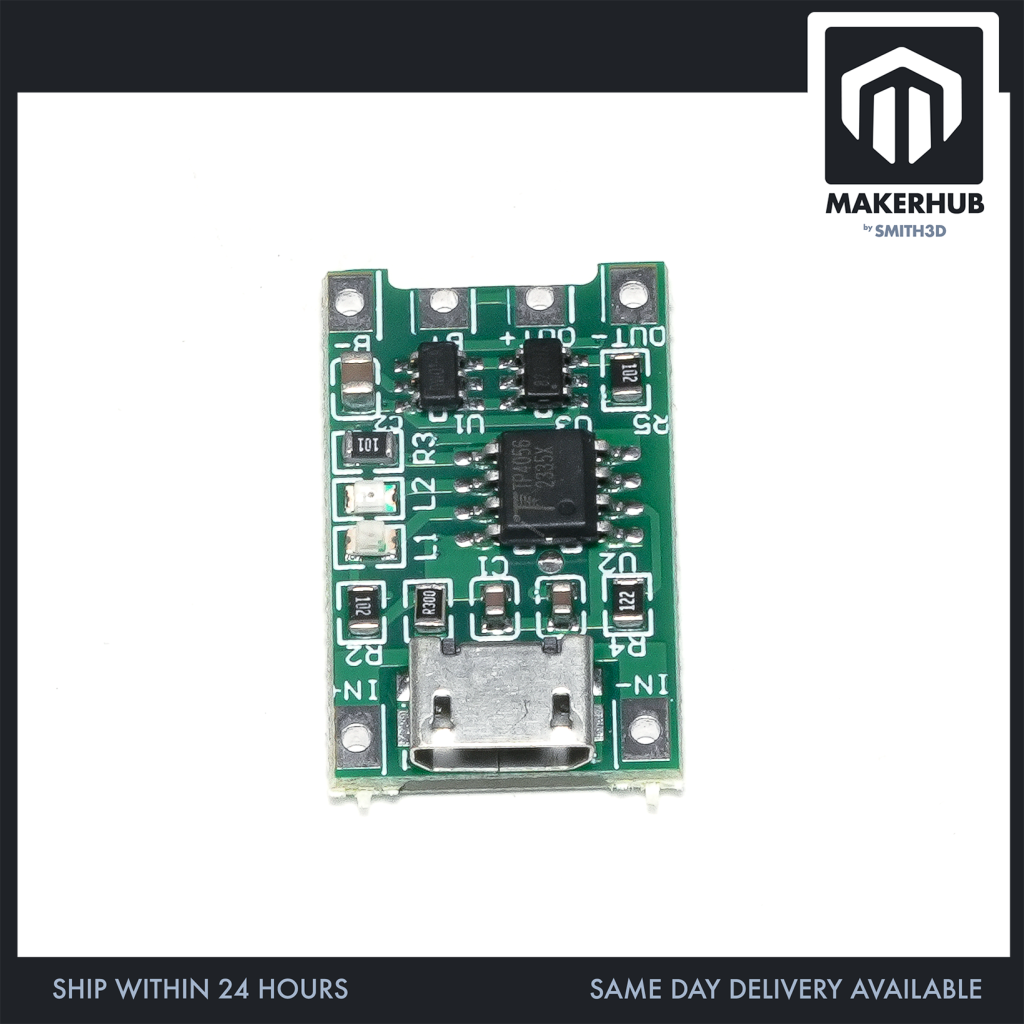

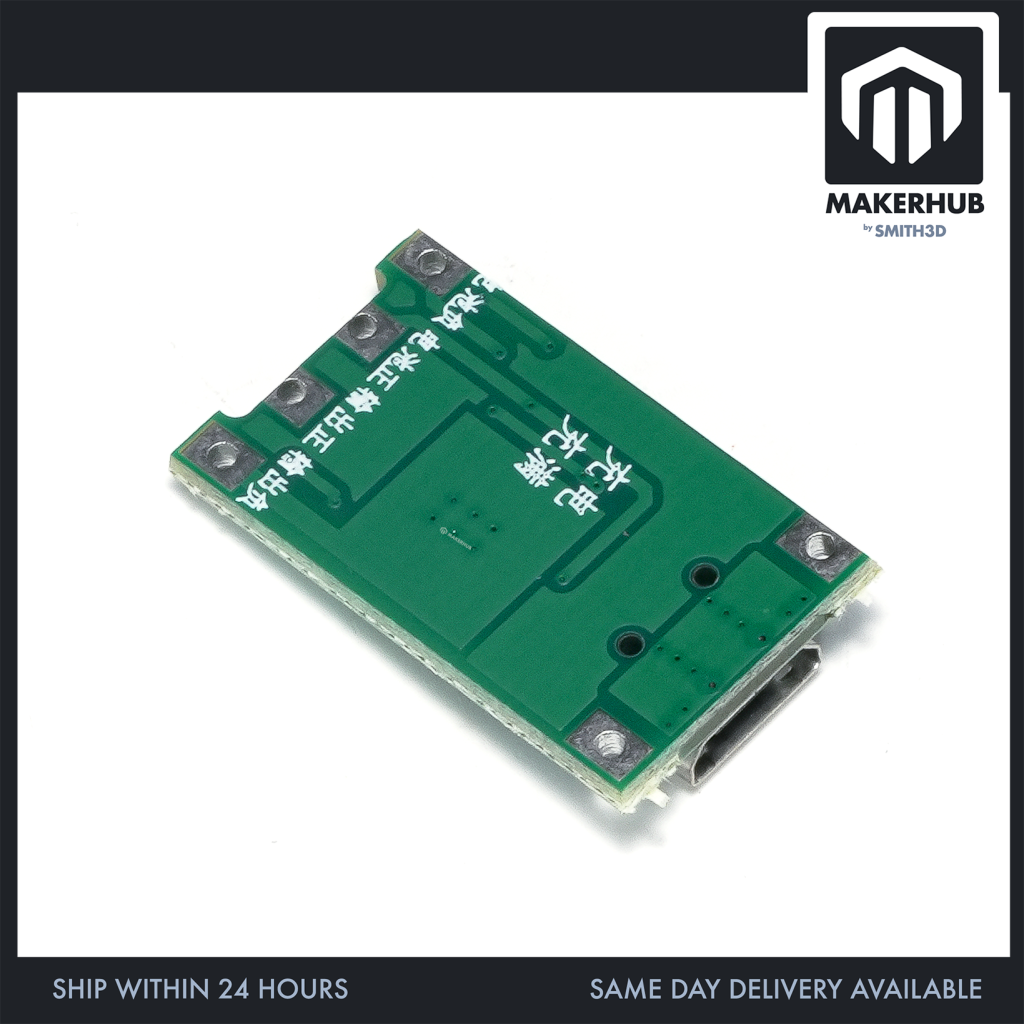

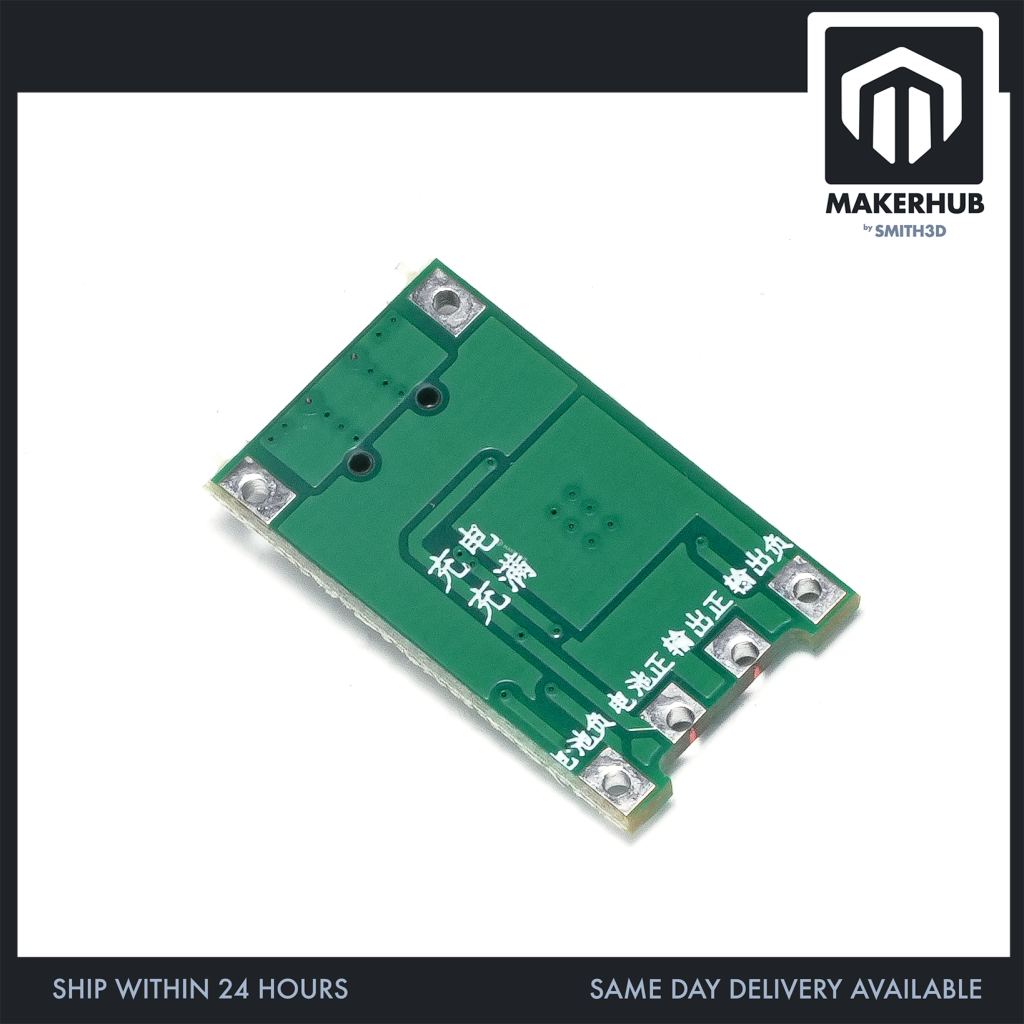

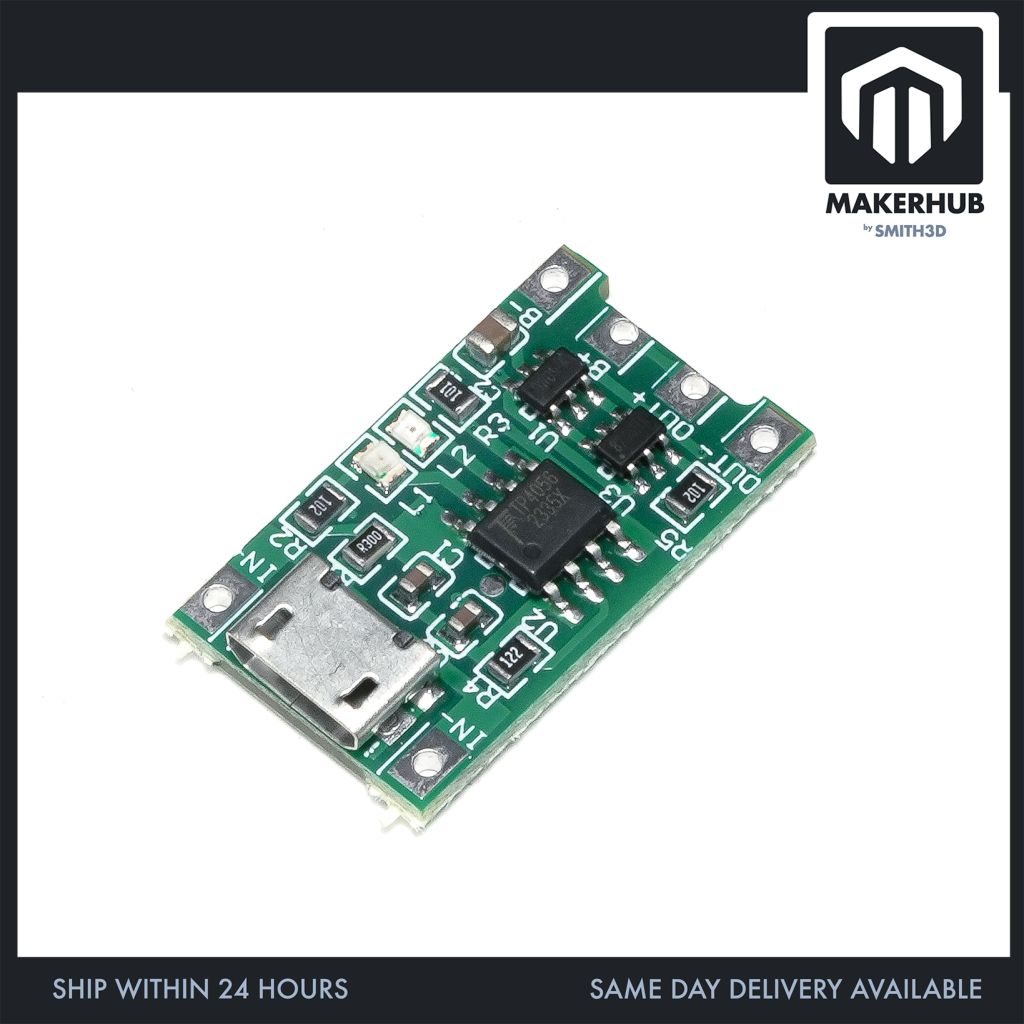

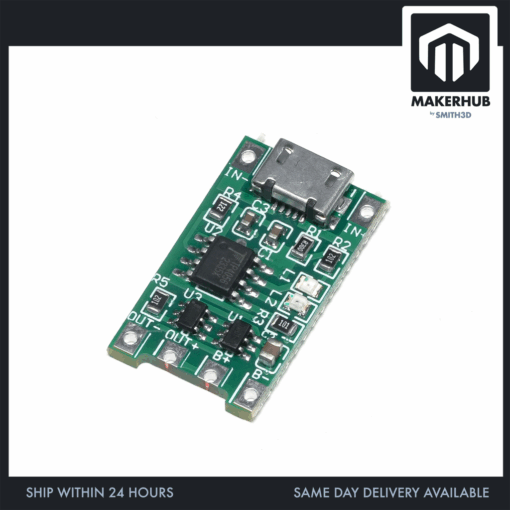

Meet the TP4056X, a trusty little module for charging single-cell lithium-ion or lithium-polymer batteries (like 18650s or LiPo cells). It’s super simple to use – just connect a standard 5V Solar power source or the handy Micro-USB port or the IN+/IN- solder pads, hook up your battery to the B+/B- pads, and you’re good to go. Based on the popular TP4056 charger IC, this module provides a constant-current/constant-voltage charge cycle, typically set for a 1A maximum charge current. Onboard LEDs show you the charging status at a glance (usually red for charging, blue or green for fully charged). Perfect for powering your portable DIY electronics projects, robots, or building custom power banks. Note: It’s generally recommended not to use the device connected to the battery while charging.


⭐ Specification
– Model: TP4056X Solar Charger Module
– Input Voltage: 4.5V – 5.5V DC
– Input Interface: Micro USB Port / Solder Pads (IN+/IN-)
– Charge Cut-off Voltage: 4.2V
– Max Charge Current: 1A (Typically set by onboard resistor)
– Charging Method: CC/CV (Constant Current / Constant Voltage)
– Indicators: Onboard LEDs for Charging / Charge Complete status
– Output Interface: Solder Pads (B+/B-)
– Battery Type: Single Cell Li-Ion / Li-Polymer


⚒️ Interesting Project
– Build a solar charginf station.
– Add solar rechargeable capability to your Arduino projects.
– Create charging stations for robot batteries.
