400KV / 1000KV High Voltage Generator Arc Ignition Coil Boost Step-Up Power Module DC 3V-6V

✅ Ready Stock in KL(Sungai Besi)
🔥 Ship within 24 hours from KL on working hours | Monday to Saturday, ( 10:00 AM to 6:00 PM ), Closed on Sunday
🚚 Same Day Delivery Available For Klang Valley Customers.
☎️ Message us via Shopee Chat or Whatsapp +6011 – 6166 5388 to arrange same day delivery or for product enquiry


Generate impressive high-voltage arcs with this DC-DC step-up power module, available in 400KV and 1000KV versions! It’s pretty straightforward to use: just provide a 3V to 6V DC input (like from a single Li-ion battery or two AA batteries) to the thinner red (+) and green (-) wires, and watch sparks jump between the thicker output wires. Great for science experiments, DIY electronic lighters, plasma generators, or educational demonstrations on high voltage. Remember this generates significant voltage, so handle it with care and ensure proper insulation. The 1000KV version typically produces a slightly longer arc than the 400KV model. Note: Continuous operation is not recommended; use intermittently to prevent overheating.


⭐ Specification

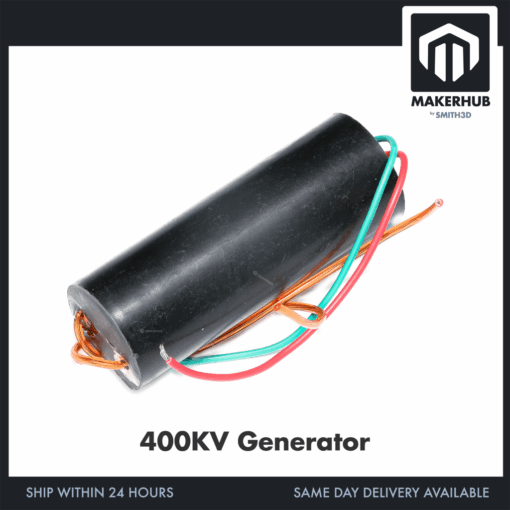

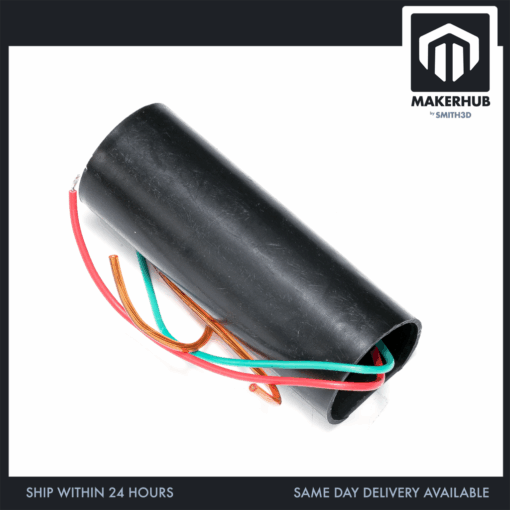

400KV Generator:
– Input Voltage: 3V – 6V DC
– Input Current: 2A – 5A
– Output Voltage: Approx. 400KV (Nominal, Pulsed)
– High Voltage Type: Pulsed DC
– Arc Distance: 10mm – 20mm
– Input Wiring: Red (+), Green (-)
– Dimensions (L x Dia): Approx. 64 x 24 mm
– Weight: Approx. 60g
– Recommended Continuous Work Time: < 10 seconds

1000KV Generator:
– Input Voltage: 3V – 7.2V DC (Often specified slightly higher)
– Input Current: 2A – 5A
– Output Voltage: Approx. 1000KV (Nominal, Pulsed)
– Arc Distance: 15mm – 25mm (Potentially requires higher input voltage for max distance)
– Dimensions (L x Dia): Approx. 88 x 26 mm
– Weight: Approx. 80g
*Note: Handle with extreme caution. High voltage output. Ensure power is off before touching output wires. Do not operate continuously.*


⚒️ Interesting Project
– Build a cool electronic arc lighter.
– Experiment with plasma speaker concepts.
– Power an ion wind lifter (Biefeld-Brown effect).
