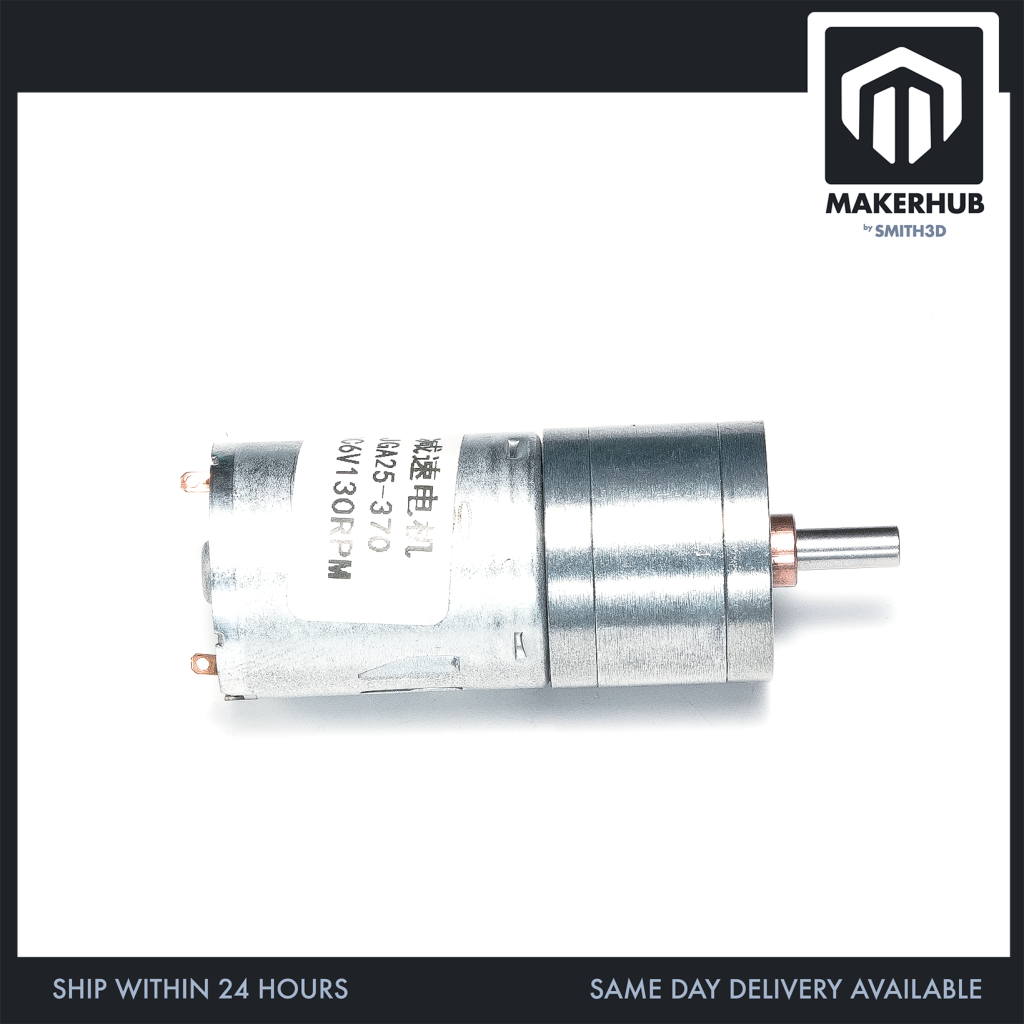

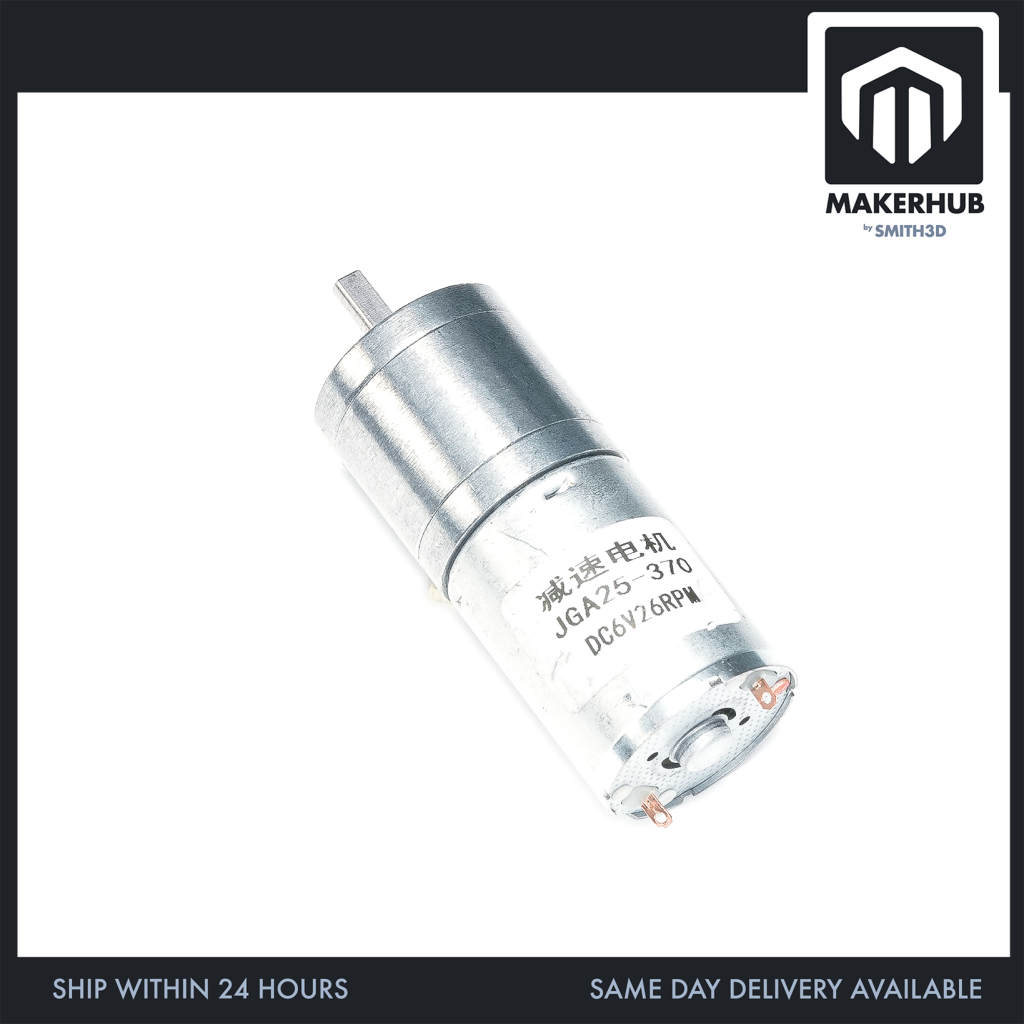

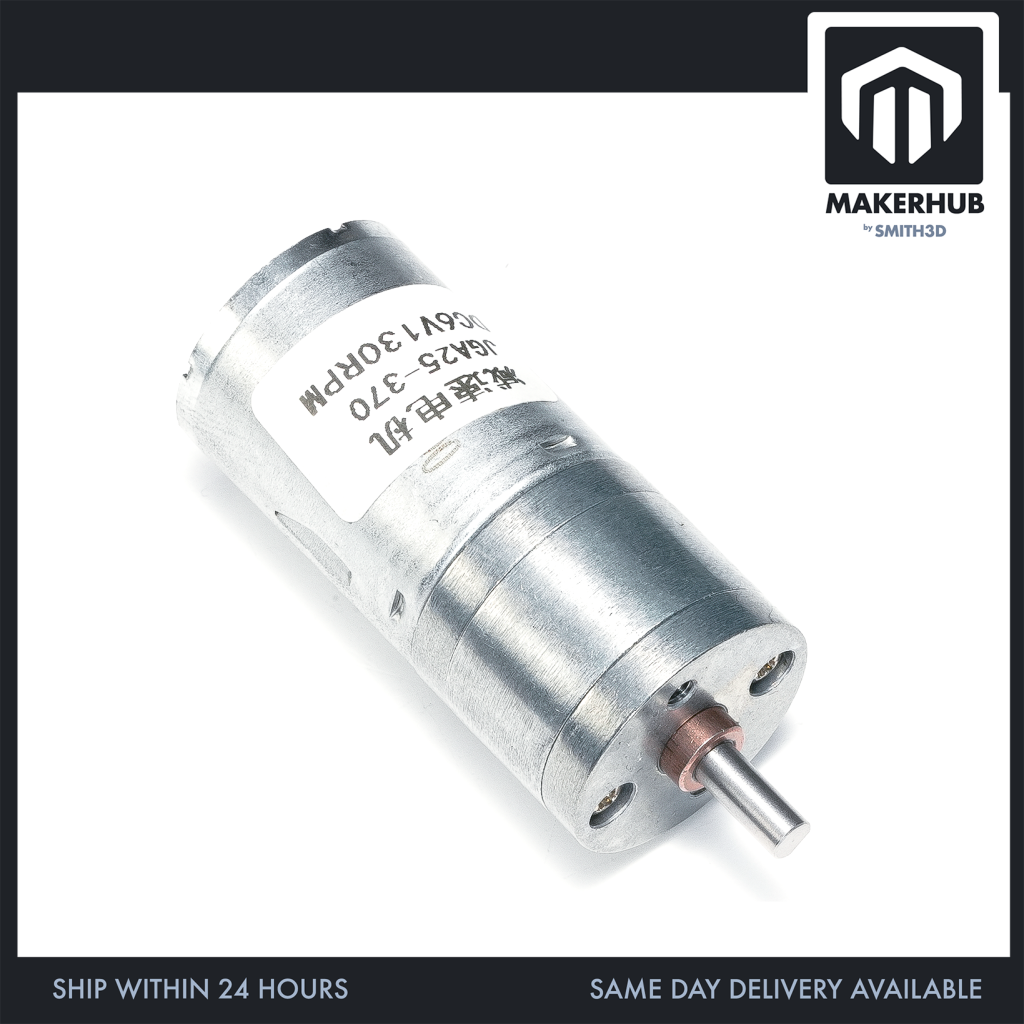

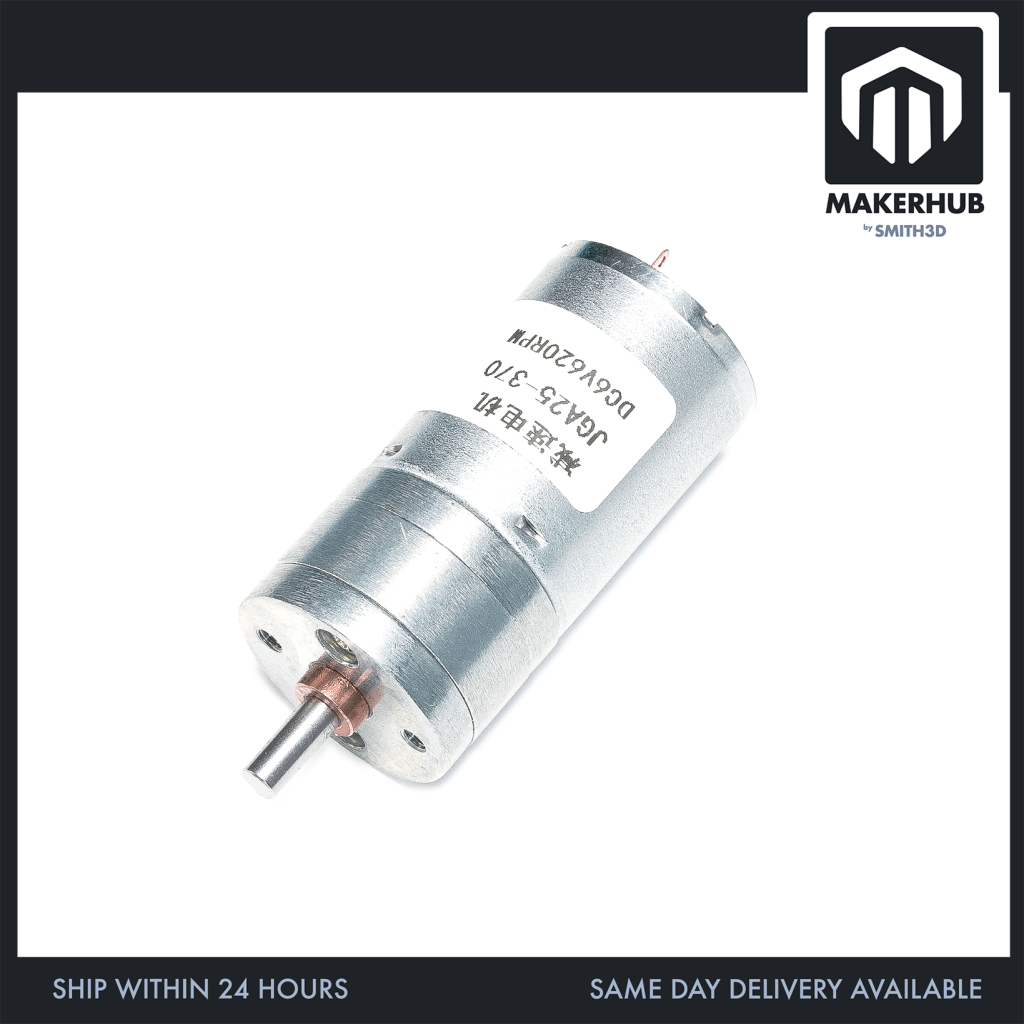

Power your next robotics project with the reliable JGA25-370 DC geared motor. Operating at 6V DC, this motor features a sturdy metal gearbox, delivering consistent torque suitable for a variety of applications. It’s a popular choice for DIY enthusiasts building small robots, automated systems, or custom mechanisms requiring controlled rotational movement. This motor is relatively straightforward to integrate into your projects using standard motor drivers or controllers. Choose from available speed variations (20 RPM, 100 RPM, or 600 RPM) to match the specific needs of your design, balancing speed and torque effectively.


⭐ Specification
– Model: JGA25-370
– Operating Voltage: 6V DC (Nominal)
– Motor Diameter: 25 mm
– Shaft Diameter: 4 mm (D-Type)
– Gearbox Type: All Metal
– Connection: Solder Terminals
– Weight: Approx. 80g

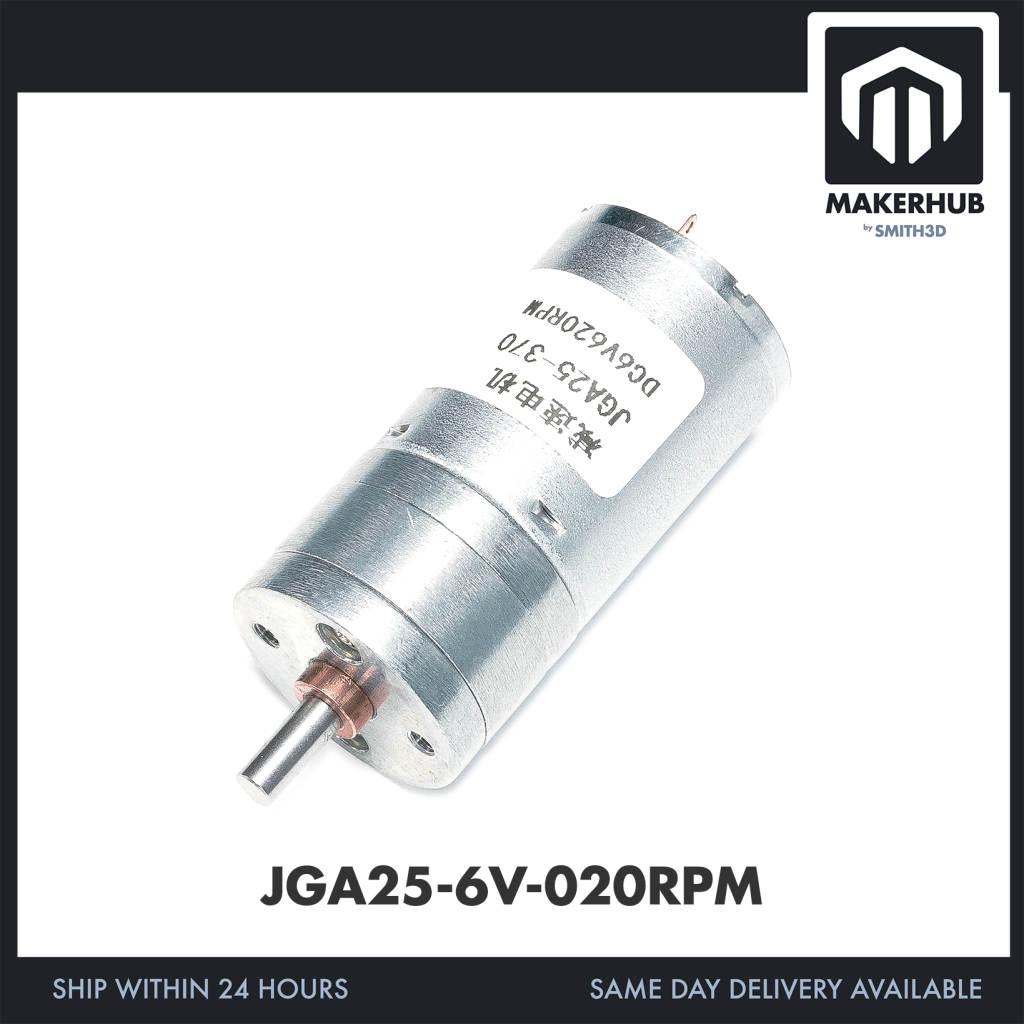

JGA25-6V-020RPM:
– No-Load Speed: 20 RPM @ 6V
– No-Load Current: ≤ 60mA
– Stall Torque: Approx. 8 kg.cm
– Stall Current: Approx. 1A

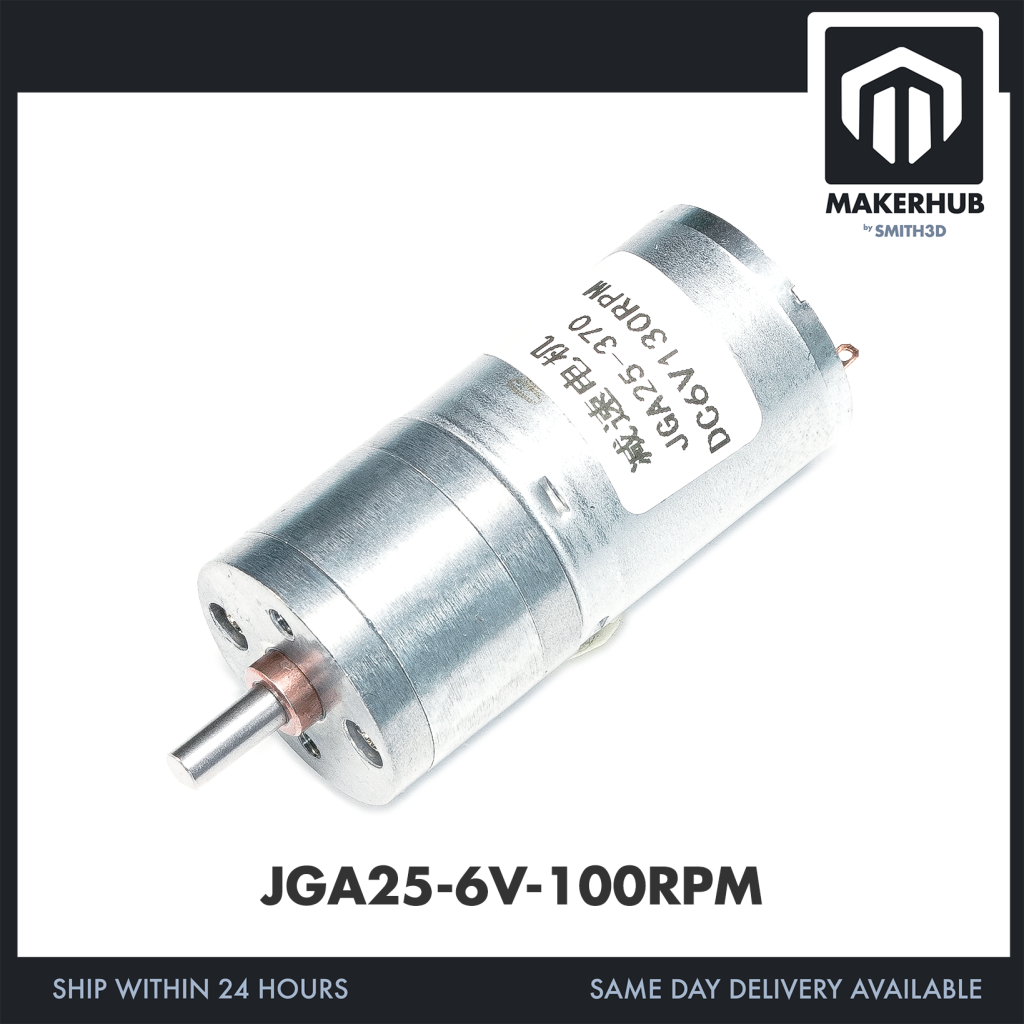

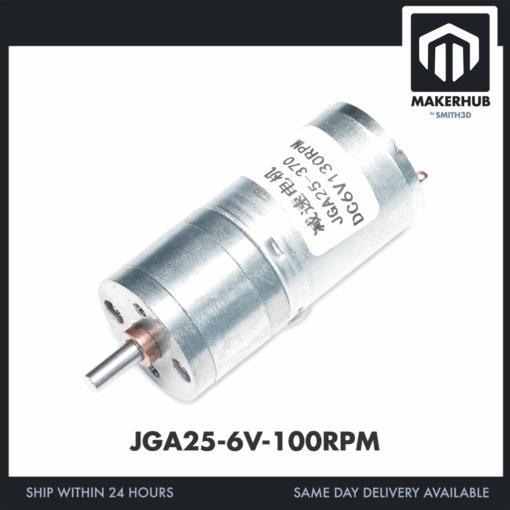

JGA25-6V-100RPM:
– No-Load Speed: 100 RPM @ 6V
– No-Load Current: ≤ 70mA
– Stall Torque: Approx. 2 kg.cm
– Stall Current: Approx. 1.2A

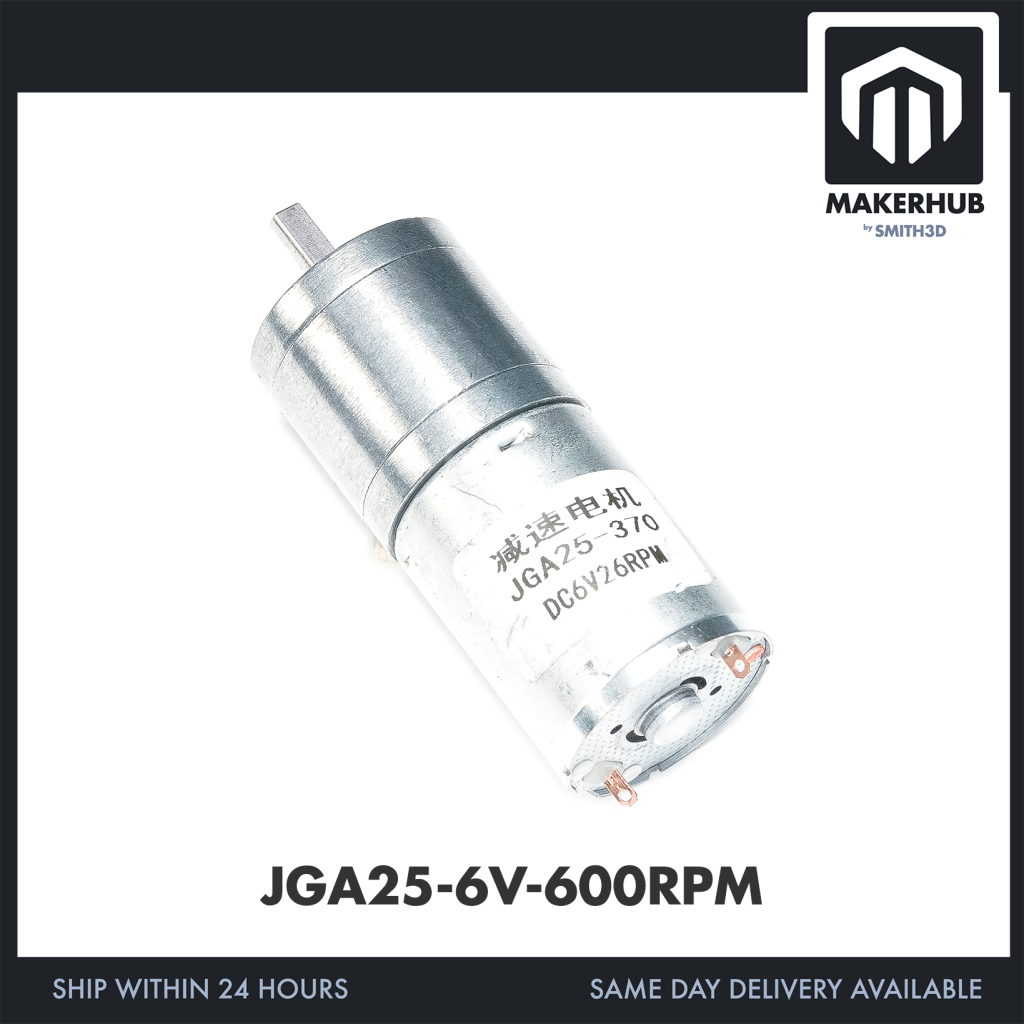

JGA25-6V-600RPM:
– No-Load Speed: 600 RPM @ 6V
– No-Load Current: ≤ 100mA
– Stall Torque: Approx. 0.5 kg.cm
– Stall Current: Approx. 1.5A


⚒️ Interesting Project
– Build a small wheeled robot with differential drive.
– Create custom automated camera sliders or turntables.
– Experiment with building simple robotic arms or grippers.
